Tissue Roll Machine
Automatic glue spraying
Auto pneumatic paper loading
With synchronous belt
Automatic paper pushing function
PLC,three jumbo roll stands
Automatic core feeding function, saving worker labor to put the core manually when making paper roll with core
embossing function to make embossing picture on the paper roll

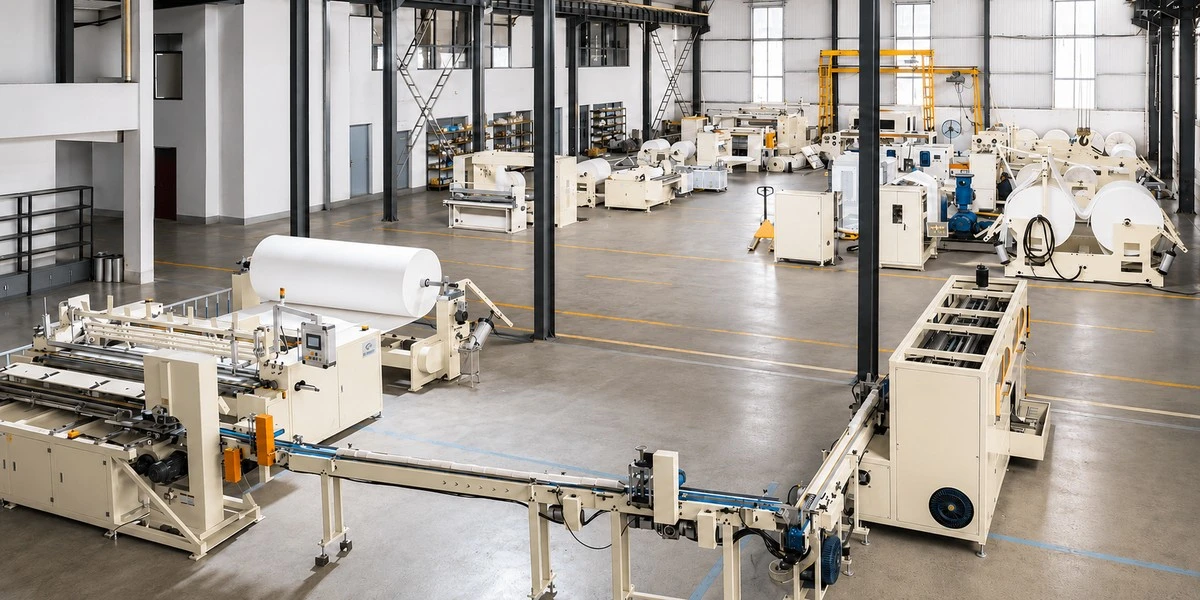

Tissue Roll Machine - Complete Production Line Solution
Henan Hengyu Machinery Co., Ltd. offers an advanced Tissue Roll Machine production line integrating rewinding, cutting, and multi-roll packing systems. This enterprise-grade solution features three jumbo roll stands and PLC control for automated operation. With auto rewinding, perforation, cutting, and automatic glue spraying functions, the line processes up to 1.5 tons per day. The automatic core feeding function eliminates manual labor, while the embossing unit creates decorative patterns on finished rolls. Additional features include auto pneumatic paper loading, synchronous belt transmission, and automatic paper pushing capability. The cutting machine operates at 80-200 cuts per minute, paired with an efficient packing system delivering 8-15 packages per minute for optimal production efficiency.
What Makes Our Tissue Roll Machine Stand Out
Our production line combines three essential systems into one seamless workflow. The rewinding unit handles both core and coreless production with finished paper diameters ranging from 50mm to 180mm.
The automatic glue spraying and embossing functions add value to your final product. These features allow you to create premium-quality toilet paper that stands out in the market.
Your operators will appreciate the user-friendly PLC control interface. The system coordinates all three machines automatically, reducing training time and minimizing operational errors.
Technical Specifications
Rewinding Machine Parameters
| Specification | Value |
|---|---|
| Original Paper Width | ≤φ1800mm |
| Production Capacity | 1.5 T/Day |
| Finished Paper Diameter | 50-180mm |
| Paper Core Diameter | 30-55mm |
| Total Power | 5.5kw + 0.75kw |
| Paper Stand | 3 stations |
| Perforation Length | 150-300mm (2 blades) |
| Machine Dimensions | 6500×3300×1700mm |
| Weight | 2500kg |
Cutting Machine Parameters
| Specification | Value |
|---|---|
| Cutting Speed | 80-200 times/min |
| Paper Roll Length | 100-200mm |
| Paper Roll Width | 70-150mm |
| Paper Roll Height | 50-150mm |
| Air Pressure | 0.6MPa |
| Total Power | 7.5kw |
| Weight | 1000kg |
Packing Machine Parameters
| Specification | Value |
|---|---|
| Specification Type | Double Row Round |
| Packing Speed | 8-15 packages/min |
| Total Power | 3.5KW |
| Gas Source Pressure | 0.6MPa |
| Machine Dimensions | 6200×2900×1400mm |
| Power Type | 220V 50HZ |
| Package Length | 400-600mm |
| Package Width | 160-240mm |
| Package Height | 160-240mm |
| Weight | 700kg |
Core Production Benefits
High-Capacity Performance
The production line processes up to 1.5 tons of tissue paper daily. This capacity suits small to medium-scale manufacturers entering the competitive tissue market.
Your investment generates returns quickly through efficient operation. The system accommodates both core and coreless roll production without complex adjustments.
Versatile Roll Configuration
Finished paper diameters range from 50mm to 180mm to match various market demands. The perforation length adjusts between 150mm and 300mm for different product specifications.
This flexibility allows you to serve multiple customer segments. You can produce standard household rolls or larger commercial products using the same equipment.
Automated Operation Features
The Tissue Roll Machine eliminates repetitive manual tasks through intelligent automation. Automatic core feeding saves significant labor costs by removing the need for manual core placement.
Auto pneumatic paper loading reduces setup time between production batches. The automatic paper pushing function ensures smooth material flow throughout the process.
Efficient Cutting and Packing
High-speed cutting operates at 80-200 cuts per minute for maximum productivity. The double-row packing system packages 8-15 units per minute with consistent quality.
This integrated approach minimizes handling between production stages. Your finished products move seamlessly from cutting to packaging without manual intervention.
Installation and Operation Support
Most customers complete machine installation through our remote guidance services. We provide detailed video tutorials and real-time technical assistance during setup.
The intuitive control system requires minimal training for your operators. Our technical team offers 24/7 support to address any production questions or troubleshooting needs.
You receive comprehensive documentation covering operation procedures and maintenance schedules. This ensures your team maintains optimal machine performance throughout its service life.
Investment Considerations for Your Business
Starting a tissue paper processing operation requires approximately $7,500-10,000 in initial capital. This investment covers the Tissue Roll Machine equipment, raw materials, and basic installation requirements.
Your factory space should accommodate the machine dimensions while providing areas for raw material storage. Industrial electricity with stable power supply meeting equipment specifications is essential.
Employee requirements vary based on automation level. A semi-automatic line typically needs 2-3 operators, while fully automated systems may require just 1-2 staff members for monitoring and quality control.
Frequently Asked Questions
Q: How much capital is needed to start a small-scale tissue paper processing plant?
A: Starting a small-scale operation typically requires $7,500-10,000. This covers tissue paper production equipment, raw materials, and basic installation. Equipment configuration choices affect your total capital requirements, with semi-automatic systems offering lower entry costs.
Q: What kind of factory space is needed?
A: You need industrial electricity with stable power supply matching equipment requirements. Sufficient space for machines, raw material storage, finished goods, and safe operating passageways is essential. Proper factory conditions ensure consistent production efficiency and product quality.
Q: How many employees does a tissue paper processing plant need?
A: Employee requirements depend on your production line type. Semi-automatic lines typically need 2-3 operators for material handling and quality monitoring. Fully automated systems may require only 1-2 staff members for supervision and maintenance tasks.
Q: What is the difference between semi-automatic and fully automatic production lines?
A: Semi-automatic lines suit small operations with lower initial investment but require more manual operation and labor. Fully automated lines handle feeding, cutting, folding, and packaging automatically, delivering higher efficiency and lower long-term operational costs for mass production.
Q: What equipment is needed to open a small tissue paper processing plant?
A: Basic equipment includes an auto toilet paper machine with embossing unit, auto/manual cutting machine, and auto/manual toilet roll packing machine. You can select semi-automatic or fully automatic combinations based on your production scale and investment budget.
Contact Us for Your Production Solution
Ready to use the Tissue Roll Machine to start your tissue paper business? Our team at Henan Hengyu Machinery provides complete guidance from equipment selection to production launch. Contact us at doris@hytissuemachine.com for personalized consultation and competitive quotations today.
