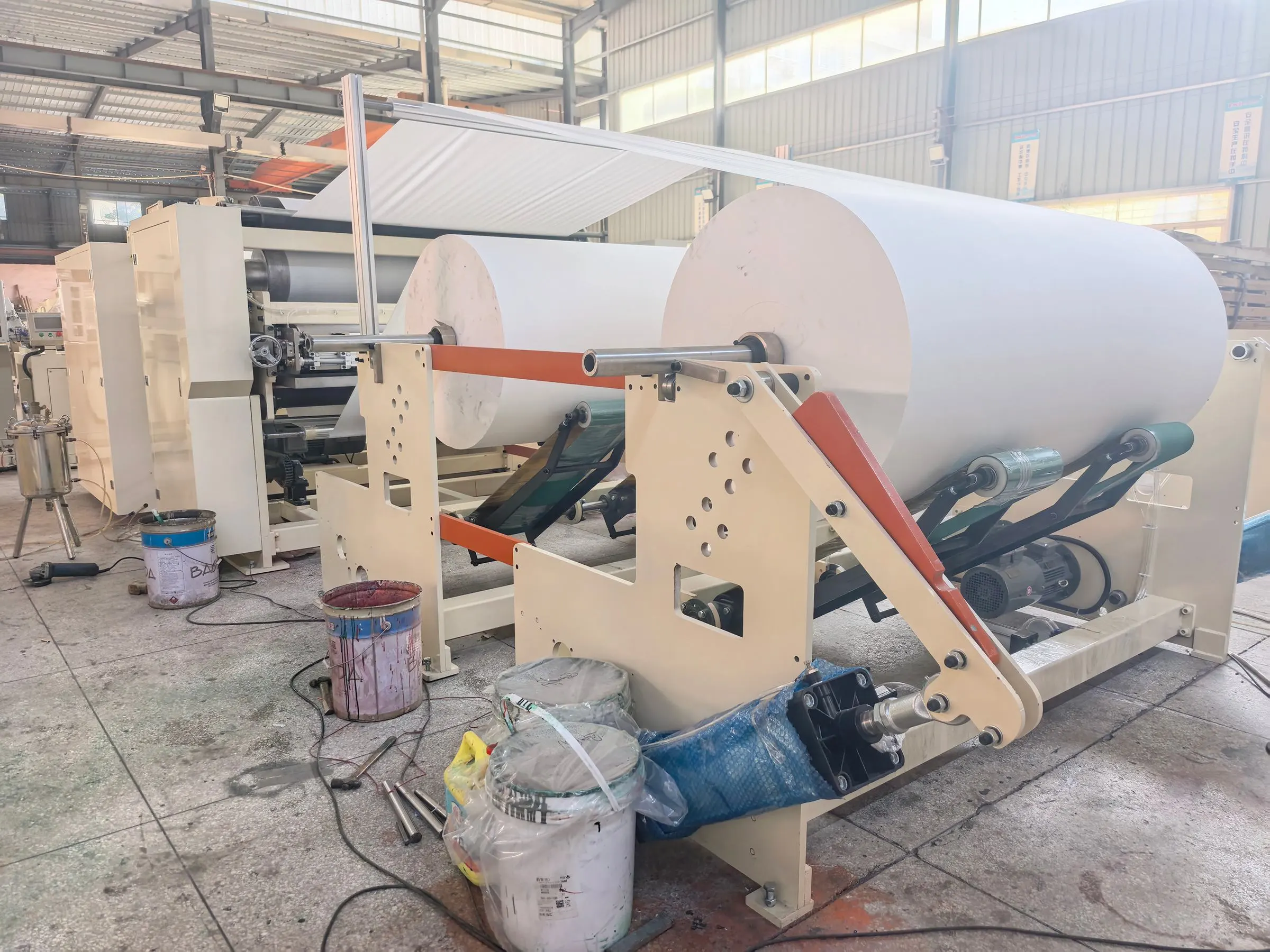

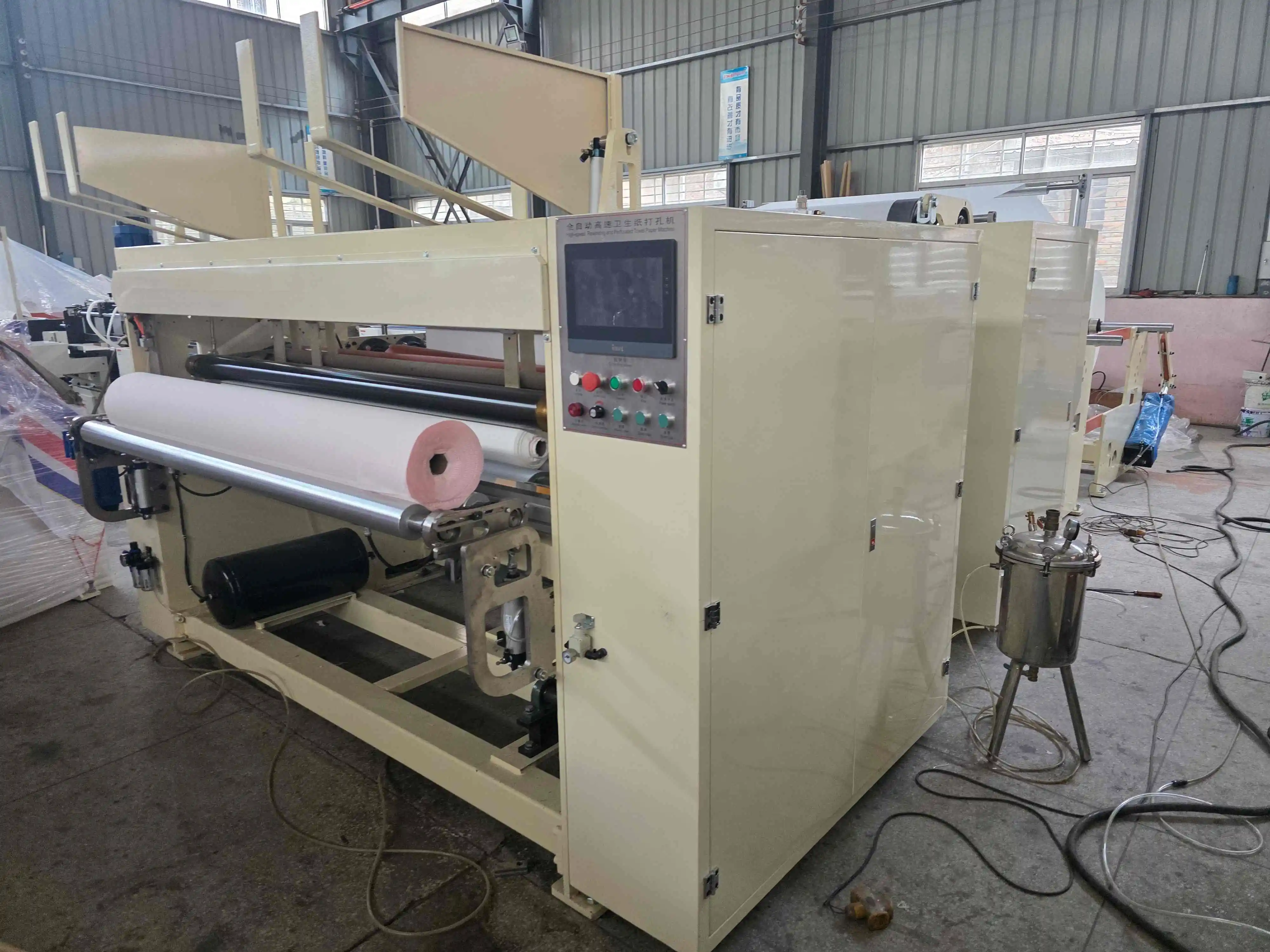

Kitchen Roll Making Machine

Kitchen Roll Making Machine – High-Speed Automated Production Line

Henan Hengyu Machinery Co., Ltd. presents an enterprise-grade Kitchen Roll Making Machine designed for high-volume tissue conversion operations. This complete production line integrates an auto rewinding machine, paper cutting machine, and tissue packing machine into one seamless workflow. The system handles parent roll widths from 1200-3000mm with a maximum diameter of 1500mm, processing 1-2 layer toilet paper (13-30g) and 2-3 layer glue lamination materials (13-15g). Operating at speeds of 180-240m/min, it produces finished rolls with diameters ranging from 90-300mm and core sizes of 30-90mm. With power configurations from 7.5-30kw and weights between 2.8-12T, this industrial equipment delivers consistent output for commercial kitchen towel manufacturers.

Complete Technical Specifications

​​​​​​​Advanced Production Features

The Kitchen Roll Making Machine incorporates sophisticated automation technology for modern tissue conversion facilities. The PLC control system with touch screen interface allows operators to adjust production parameters instantly.

Several embossing setups are beneficial for your production line. Steel-to-rubber, steel-to-wool, or steel-to-steel choices are available for single or double embossing. For reliable pattern quality, the edge embossing machine makes use of air bag technology.

Both cored and coreless manufacture are made possible by the automatic core pulling system. This adaptability enables you to satisfy a variety of market demands. Four cutting knives with customizable tolerances are part of the high-precision screw-type punching mechanism.

One to four color designs are supported using color printing. You can design unique patterns for branded kitchen towels with this capability. Strong ply bonding is ensured by the point-to-point gluing device, and visual difference is added by the color glue option.

Superior Manufacturing Advantages

Our high-speed capabilities greatly increase your manufacturing efficiency. Large orders may be processed quickly because to the maximum speed of 240 m/min. Demanding commercial production schedules are met by this performance level.

The operational breadth of this device is defined by its versatility. The wide parent roll width range of 1200-3000mm fits various raw material sources. Adjusting the finished roll diameter from 90 to 300 mm enables product diversity for various market niches.

Cutting-edge embossing technology produces distinct, eye-catching designs that improve product attractiveness. Every sheet has a uniform texture thanks to the imported embossing rollers. In competitive retail settings, this quality distinction makes your kitchen towels stand out.

Human error and labor requirements are decreased by intelligent automation. Throughout production, the automatic paper feeding mechanism keeps the tension constant. Precise winding for consistent roll density is ensured by core positioning operations.

Installation and Operation Support

Over 95% of our clients use remote guidance services to finish installations. Real-time technical support and thorough video training are offered by our engineering staff.

You get thorough operator training that covers every facet of manufacturing. The interface is easy to use and requires no technical knowledge. In three to five days, the majority of production teams reach full operational proficiency.

Our round-the-clock technical assistance guarantees continuous production cycles. The majority of problems can be fixed remotely without the need for on-site visits. Costly downtime is reduced with this responsive service paradigm.

Investment Returns and Business Growth

The Kitchen Roll Making Machine offers excellent return on investment for tissue converters. Lower labor costs combined with high-speed output reduce per-unit production expenses significantly.

Your business scales efficiently with equipment designed for continuous operation. The robust construction withstands demanding 24/7 production schedules. Consistent quality output builds customer loyalty and repeat orders.

The versatile configuration supports market expansion strategies. Produce different roll sizes, ply counts, and embossing patterns without equipment changes. This flexibility helps you respond quickly to emerging market opportunities.

Frequently Asked Questions

Q: How much capital is needed to start a kitchen towel production business?

A: Starting a small-scale operation typically requires US$7,500–10,000. This covers equipment purchase, raw materials, and installation. Your exact investment depends on automation level and production capacity goals.

Q: What factory space requirements should I consider?

A: You need industrial electricity with stable power supply meeting equipment specifications. Sufficient space must accommodate machinery, raw material storage, finished goods inventory, and safe operational areas. Good factory conditions directly impact production efficiency.

Q: How many employees does production require?

A: Employee numbers depend on automation levels. Fully automatic lines require 2-3 operators for monitoring and material handling. Semi-automatic configurations need 4-6 workers for manual intervention points.

Q: What's the difference between semi-automatic and fully automatic lines?

A: Semi-automatic systems suit smaller operations with lower initial investment but require more manual labor. Fully automatic lines complete feeding, cutting, and packing automatically with higher efficiency and lower long-term operational costs.

Q: Can the machine handle different paper materials?

A: Yes, the equipment processes various materials including virgin pulp, bamboo fiber, and recycled paper. Tension control systems adjust for different fiber properties. Enhanced dust extraction manages material-specific production challenges.

Q: How do I maintain consistent perforation quality?

A: Regular blade inspection and replacement prevent inconsistent cutting. Synchronization between rewinder and perforation units requires periodic calibration. Proper maintenance ensures clean sheet separation throughout production runs.

Contact Us for Complete Production Solutions

Ready to use the Kitchen Roll Making Machine to establish your kitchen towel production facility? Contact us at doris@hytissuemachine.com to discuss your specific requirements and receive a customized equipment proposal.
