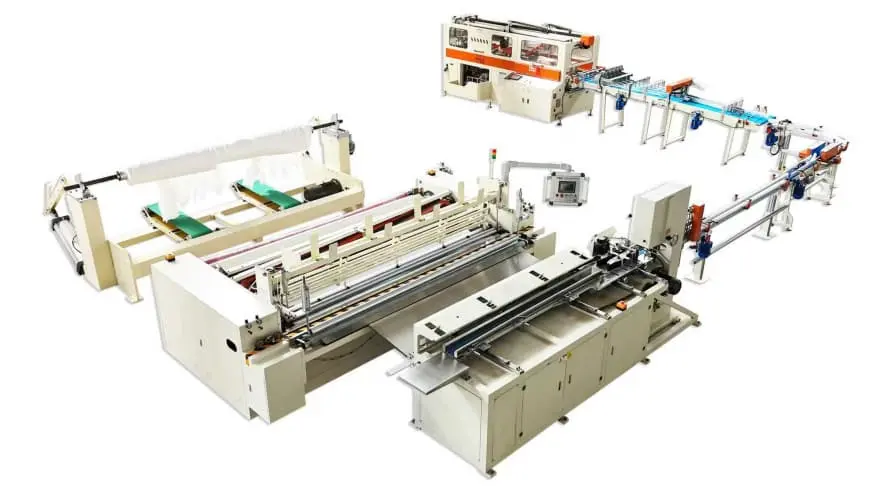

Toilet Roll Production Line
Complete Automatic Toilet Paper Manufacturing Solution
We provide complete solutions from jumbo roll processing to finished toilet paper packaging.
Complete Toilet Roll Production Solution
Our toilet roll production line is desiqned for efficient
manufacturing of high quality toilet paper products
The complete production process includes raw material feeding,
rewinding, embossing, perforating, cutting and automatic packing.
◯ ────────➜◯ ───────➜◯───────➜◯────────➜ ◯
Jumbo Roll Feeding → Rewinding & Embossing → Perforating → Log Cutting → Automatic Packing
We offer both semi-automatic and fully automatic confiqurations to meet different production needs and budgets.

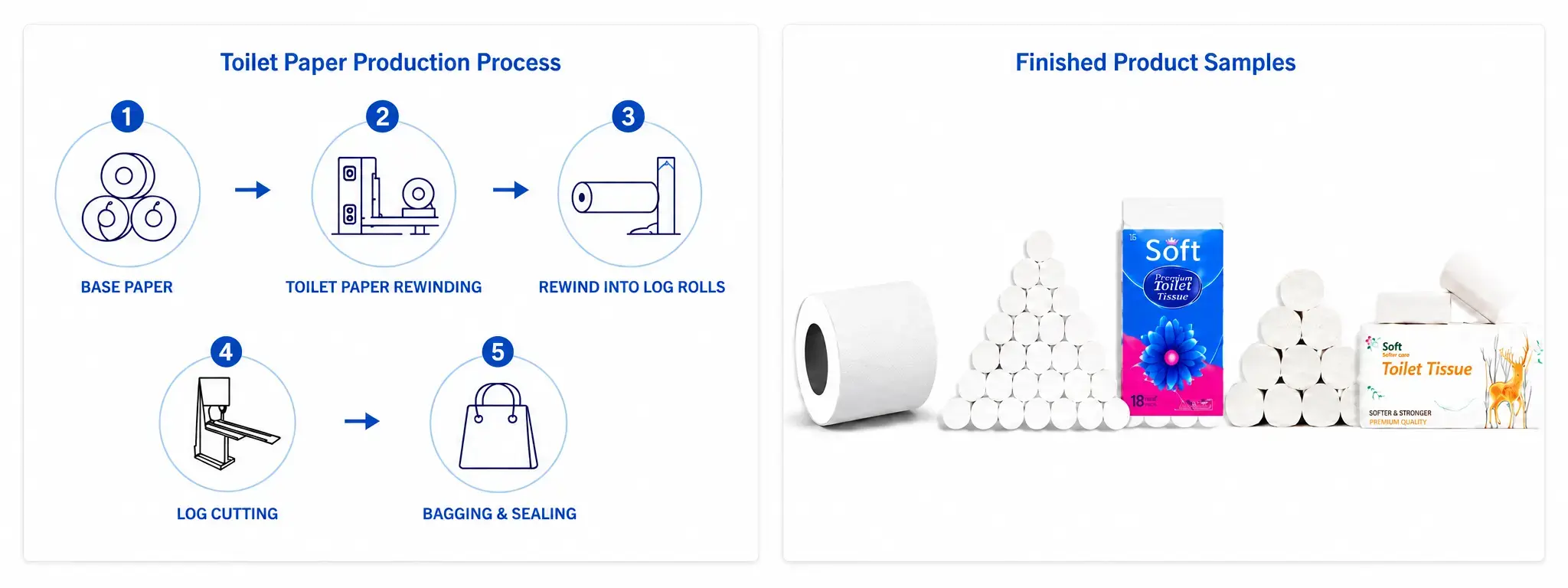

Toilet Paper Production Flow
Toilet Paper Production Line

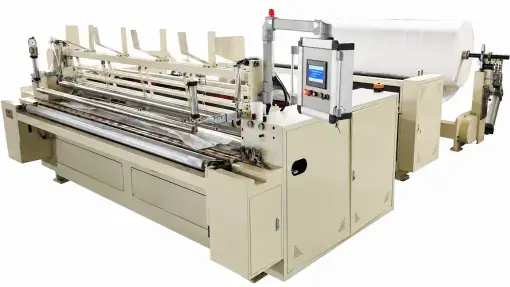

Model HY-1880 Toilet Paper Rewinder
Model HY-1880 Toilet Paper Rewinder Parameters
Machine Name：type toilet paper rewinder
Width of Raw Paper：≤2200mm
Diameter of Raw Paper：≤1500mm
Diameter of Finished Product：40-150mm
Inner Diameter of Finished Paper Core：30-50mm
Machine Weight：2.5T
Machine Dimensions：4300x3320x1700mm
Total Power：4kw +0.37kwX2
Basic Parameters Of Band Saw Paper Cutter
Product Name：Band saw paper cutting machine
Product Model：HY-3750-40
Finished Product Specification ：Cutting length is adjustable
Processing Capacity：2.5T/day
Saw Blade Length：3750mmX40mm
Required Power：1.5KW
Total Machine Mass：350kg
Main Machine Dimensions：1500×80x1800mm
Basic Parameters of Water-Cooled Sealing Machine
Product Name：ater -cooled sealing machine
Product Model：HY-500
Power Supply Voltage：220V/50HZ
Sealing Width: 500 mm
Width of Flat Heating Wire: 6mm
Diameter of Round Heating Wire: 0.5 mm
Total Machine Mass: 40 kg
Dimensions of Main Machine : 750×700×800 mm
Model HY 2550 Toilet Paper Rewinder
Model HY-2550 Toilet Paper Rewinder Parameters
Machine Name：type toilet paper rewinder
Width of Raw Paper：≤2550mm
Diameter of Raw Paper：≤1500mm
Diameter of Finished Product：40 -150mm
Inner Diameter of Finished Paper Core：30-50mm
Machine Weight：2.5T
Machine Dimensions：4300x3320x1700mm
Total Power：5.5kw +0.37kwX2
Basic Parameters Of Band Saw Paper Cutter
Product Name：Band saw paper cutting machine
Product Model：HY-3750-40
Finished Product Specification ：Cutting length is adjustable
Processing Capacity：2.5T/day
Saw Blade Length：3750mm×40mm
Required Power：1.5KW
Total Machine Mass：350kg
Main Machine Dimensions：1500×80x1800mm
Basic Parameters of Water-Cooled Sealing Machine
Product Name：ater -cooled sealing machine
Product Model：HY-500
Power Supply Voltage：220V/50HZ
Sealing Width: 500 mm
Width of Flat Heating Wire: 6mm
Diameter of Round Heating Wire: 0.5 mm
Total Machine Mass: 40 kg
Dimensions of Main Machine : 750×700×800 mm

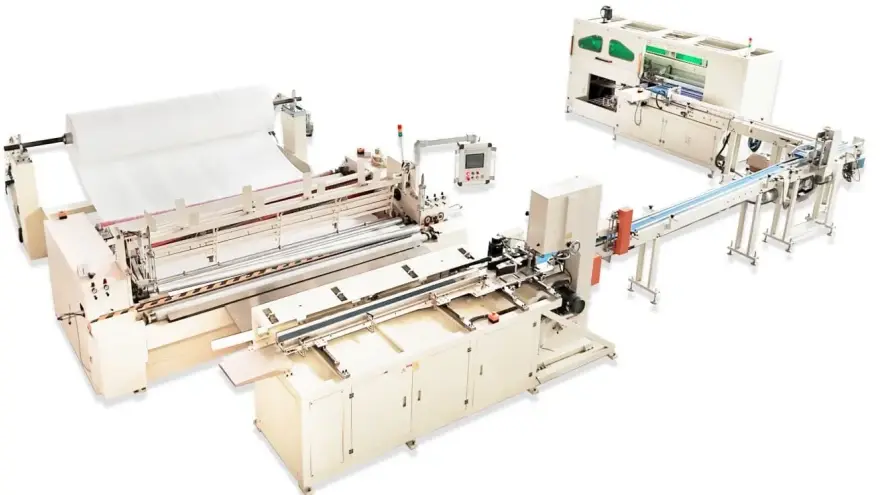

HY-3000 toilet paper auto bagging line
| Name：type toilet paper rewinder | Name：Automatic Band Saw Paper Cutter | Name：Automatic MuIti-row Packing Machine |
| Diameter of Raw Paper：3000mm | Product Model ：HY-3750-60 | Product Model：HY-D25 |
| Diameter of Finished Product：40-150mm | Finished Product Specification：Cutting length is adjustable | Air pressure of air source：0.6Mpa |
| Inner Diameter of Finished Paper Core：30-50mm | Processing Capacity：2.5T/ day | Power supply voltage：380V 50HZ |
| Machine Weight：6.5T | Saw Blade Length：3750mmX60mm | Packing Speed: 15–16 / 9–10 packs/min |
| Machine Dimensions：5700×4539×1800mm | Required Power：5.5KW | Packing size：L450-900,W140-420,H90-180 |
| otal Power ：4kw+7.5kw+4kw | Total Machine Mass：2T | Total power: 11KW |
| Main Machine Dimensions：4861x1656x1800mm |

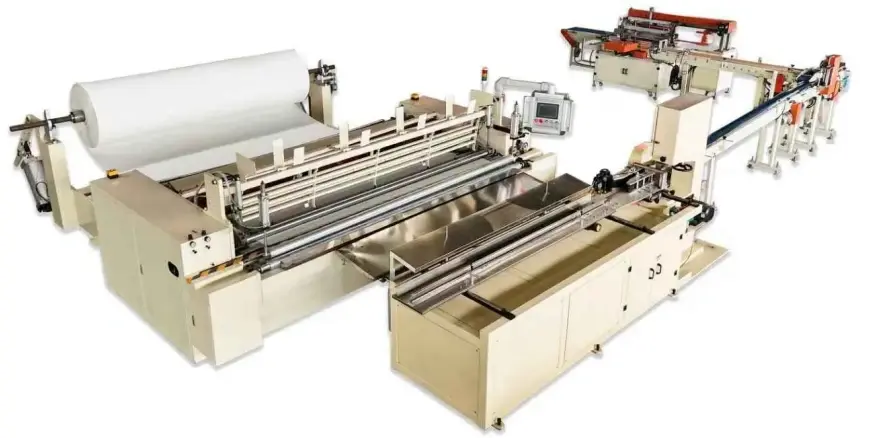

HY-3000 toilet paper manual bagging line
| Name: Model 3000 Toilet Paper Rewinder | Name：Band Saw Automatic Paper Cutter | Name ：MuIti-row Round Roll Packaging Machine |
| Width of Raw Paper: ≤3000MM | Product Model： HY-3750-60 | Air Supply Pressure：0.6pa |
| Diameter of Raw Paper: Φ≤1600MM | Finished Product Specification | Power Supply Voltage：380V/50HZ |
| Diameter of Finished Product: 40‑150MM | Cutting speed：Design speed:220 cuts/minute | Packaging Size：Supports 2-6 rows |
| Inner Diameter of Finished Paper Core: 30‑50MM | Stable speed:50-180 cuts/minute | Total Power ：4KW |
| Machine Weight: 6T | Saw Blade Length | Packaging Speed： packs/minute |
| Machine Dimensions: 5900×4539×1800MM | Required Power ： 4kw | Sealing: Dual-temperature sealing & cutting |
| Total Power: 4KW+2.2KW+2.2KW | Main Machine Dimensions ：4300X1000X1800mm | Dimensions of Main Machine ：6750X1400X1500MM |

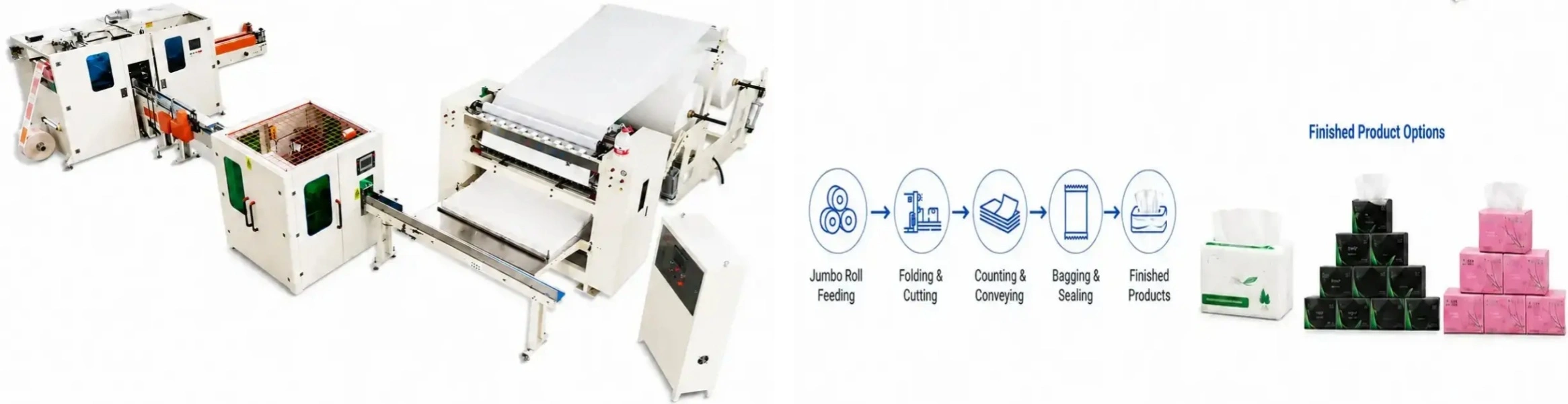

HY-7P Facial tissue Production Line
|
Name: Facial Tissue Machine |
Name: Rotary Log Cutter | Name: 3D Packing Machine |
| Width of Raw Paper: ≤1500MM | Tissue Cutting Size: L 90–220 mm;W 80–110 mm; Feeding Height 30–190 mm; Cutting Height 20–130 mm |
Product Name: 3D Packing Machine |
| Diameter of Raw Paper: ≤1500MM | Paper head and tail removing system: Head and tail cutting length:15‑25mm, Controlled by PLC program and operated via display screen | Designed production speed: 180 packs/minute (Guaranteed stable production speed: 80‑160 packs/minute) |
| Manufacturing finished products: Folding (90) ±1mm * (100‑200mm) | Conveying method: Positioning and conveying driven by a servo motor system with synchronous belts | Tissue adaptation range: L100‑230mm H30‑100mm W80‑110mm |
| Production speed: 800‑1000 sheets | Paper cutting channel: 1 lane | Packaging material: Double‑sided heat‑sealed CPP film (Packaging film thickness: 0.04‑0.05mm) |
| Fan size: 22KW Roots blower | Design speed: 200 cuts/minute, with each cut covering the channel | Roll film specification: Maximum diameter: 600mm; Maximum width: 380mm |
| Machine Weight: 6T | Production speed: 150‑200 cuts/minute, depending on paper length and cutting method | Total power: 14kw |
| Machine Dimensions: 8000×2500×2400MM | Sharpening feed: Automatic feed sharpening for the large circular knife | Total Machine Mass: 3T |
| Total Power: 5.5KW+22KW | Paper cutting length adjustment: Set via the control panel, with a tolerance within ±1mm | Dimensions of Main Machine: 4150×3700×1630mm |
