Spiral Paper Core Making Machine

Professional Spiral Paper Core Making Machine for Industrial Tube Production

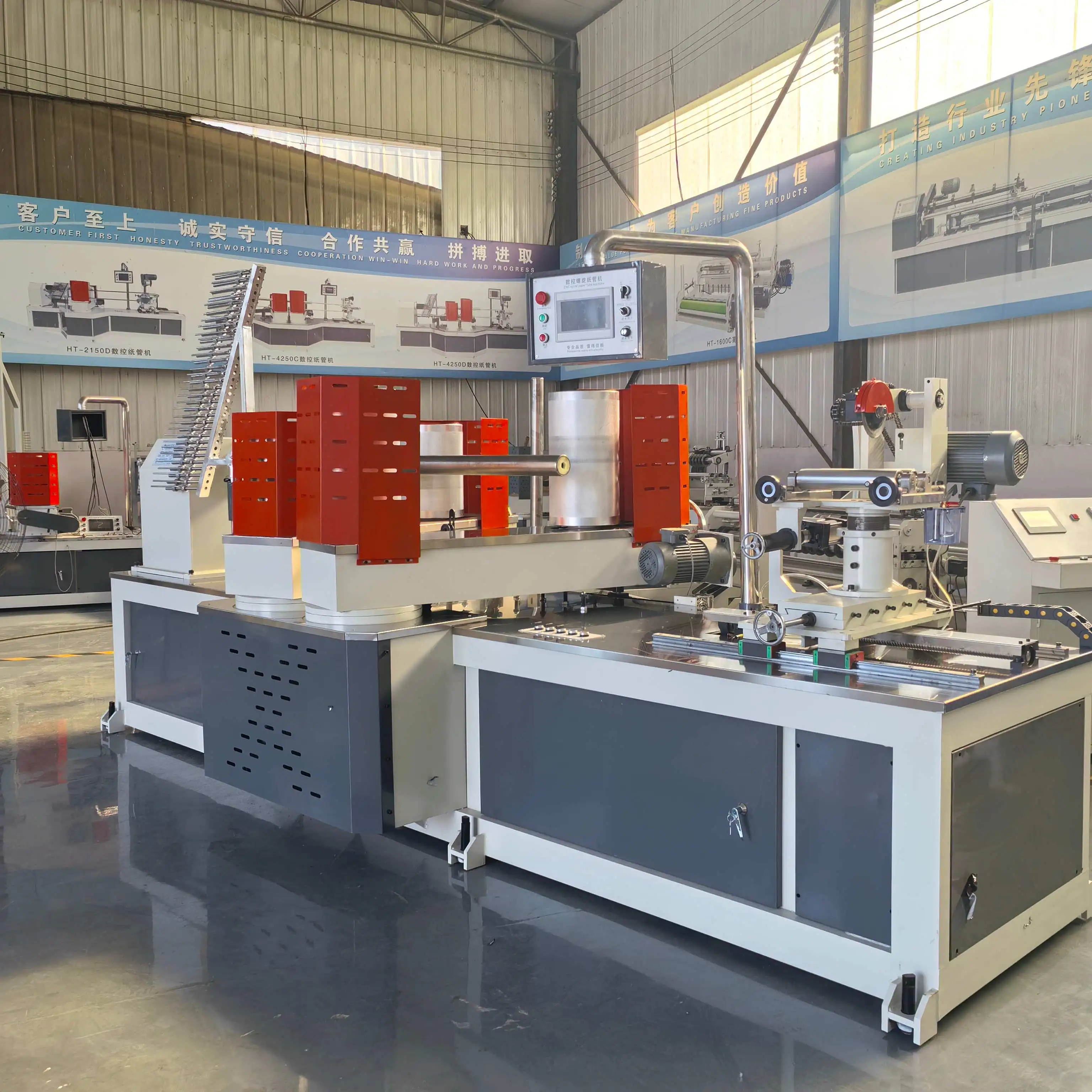

Henan Hengyu Machinery presents the HY-4250 CNC Spiral Paper Core Making Machine, professional tool designed for industries that need precise, adaptable, and high-speed production of paper tubes.This machine is ideal for manufacturers aiming to produce spiral wound tubes with a wide range of specifications.It can handle 3 to 32 layers of paper and create tubes with diameters ranging from 30 to 200 mm, and wall thickness between 1 and 16 mm.The machine can operate at speeds of 3 to 30 meters per minute, utilizing advanced four-head double-belt winding technology to increase efficiency.It includes a servo synchronous tracking cutting system for accurate and clean cuts, and only requires 1 to 2 operators.It runs on a 15 kW power supply and is built to be cost-effective for paper tube production.

Technical Specifications

Why Choose Our Spiral Paper Core Making Machine

One Machine, Multiple Product Specifications

This machine provides a great deal of production flexibility as it allows for diameter adjustments from 30 to 200 mm and thickness control from 1 to 16 mm.
This versatility means you can meet the needs of various industries with just one machine.

Whether you are making toilet paper cores, kitchen towel tubes, or industrial packaging cores, one machine can handle all these requirements.

Four-Head High-Efficiency Design

The four-head double-belt winding system increases your output significantly.It ensures consistent quality and precise dimensions throughout your production runs.

This setup dramatically reduces the time spent on each unit, enabling your factory to take on larger orders without lowering the quality of the products.

Advanced Servo Tracking Cutting Technology

Precise cutting is essential for the final products quality.The servo synchronous tracking system ensures smooth surfaces and uniform tube lengths.

Improved cutting accuracy reduces material waste, saving you money on raw materials while delivering consistent products to your customers.

Heavy-Duty Industrial Construction

The machine's frame is made from heavy-duty CNC-cut steel plates which minimize vibration during continuous use.This construction contributes to the machine's longevity and maintains its precision over time.

Reduced vibration also decreases wear on machine parts, thereby lowering maintenance costs and increasing production reliability.

Intelligent Control System

The Delta PLC control system, combined with a large color touchscreen, simplifies the operation of the machine.You can quickly adjust parameters, monitor the production process in real-time, and switch between different product specifications with ease.

New operators can learn the system more quickly due to its user-friendly interface.This means training time is significantly reduced, from weeks to only days.

Labor Cost Optimization

Traditional machines often require 3 or 4 operators, while this machine needs only 1 to 2 workers to maintain full production capacity.

Lower labor requirements directly lead to improved profit margins.This allows your staff to focus on other important tasks in your facility.

Versatile Industrial Applications

Tissue Paper Industry

This machine is suitable for producing high-quality cores for toilet paper rolls, kitchen towels, hand towels, and large tissue rolls.The precise dimensional control ensures smooth unwinding in both homes and businesses.

Your tissue manufacturing customers rely on consistent core strength.This machine ensures reliable performance in every batch.

Textile and Yarn Winding

Textile mills require cores that withstand high rotational speeds and winding tension. The Spiral Paper Core Making Machine produces tubes with superior radial crush strength for fabric, yarn, and thread applications.

Uniform wall thickness prevents deformation during high-speed winding operations.

Packaging and Mailing Solutions

With the growth of e-commerce, there is an increasing demand for protective mailing tubes.You can make lightweight yet sturdy cores for shipping posters, protecting documents, and edge guards.

This cost-effective production method meets the volume needs of logistics companies.

Industrial Film and Foil Cores

Manufacturers producing stretch film, aluminum foil, and plastic sheets need cores that maintain their structure under high centrifugal forces.Our precision winding technology creates tubes that perform reliably in harsh industrial environments.

Enterprise-Level Advantages

20+ Years Manufacturing Experience

Henan Hengyu Machinery has over 20 years of experience in tissue and paper machinery manufacturing.This experience is reflected in the design of the machines and the practical solutions offered.

You benefit from the accumulated knowledge gained through thousands of installations worldwide.

Complete Technical Support

We provide full support beginning from factory planning to the launch of production.Remote installation guidance helps more than 95% of our customers complete setup successfully.

Our lifetime technical support includes 24/7 online assistance, video operation guidance, and remote troubleshooting.Your production will not be affected by technical uncertainties.

Global Logistics Expertise

With over 15 years of international export experience, we manage shipping arrangements efficiently.We offer multiple shipping options including EXW, FOB, CIF, and door-to-door delivery.

Our logistics team ensures your Spiral Paper Core Making Machine arrives safely, regardless of destination.

Quality Assurance and Warranty

Every machine is subjected to strict quality checks before being shipped.You receive a one-year warranty with free replacement of non-human damaged parts.

This protection gives you confidence in your investment and peace of mind during crucial production phases.

Frequently Asked Questions

Q1: What paper core sizes can the machine produce?

A: This machine is adjustable for diameter, thickness, and length.One machine can produce multiple paper core specifications, providing maximum production flexibility.

Q2: Can it produce toilet paper cores and kitchen towel cores?

A: Yes. The machine is widely used in tissue paper factories for toilet paper, kitchen towel, hand towel, and jumbo roll core production.

Q3: How many workers are needed?

A: Usually only 1-2 operators are required to run the full production line efficiently.

Q4: What type of adhesive works best?

A: Polyvinyl Acetate (PVA) or Sodium Silicate are standard options. PVA is preferred for faster drying and higher bond strength in high-speed production.

Q5: How long does diameter changeover take?

A: With our quick-change system and adjustable belt angles, a trained operator completes diameter changeover in 20-40 minutes.

Q6: Can the machine handle recycled paper?

A: Yes, provided the paper's moisture content is between 6-8% and its tensile strength meets minimum industrial thresholds for winding tension.

Get Your Custom Solution Today

Email us at doris@hytissuemachine.com with your Spiral Paper Core Making Machine requirements, and we'll provide a detailed quotation within 24 hours.
