Kraft Paper Rewinding Machine

Kraft Paper Rewinding Machine: High-Speed Paper Tube Core Processing Solution

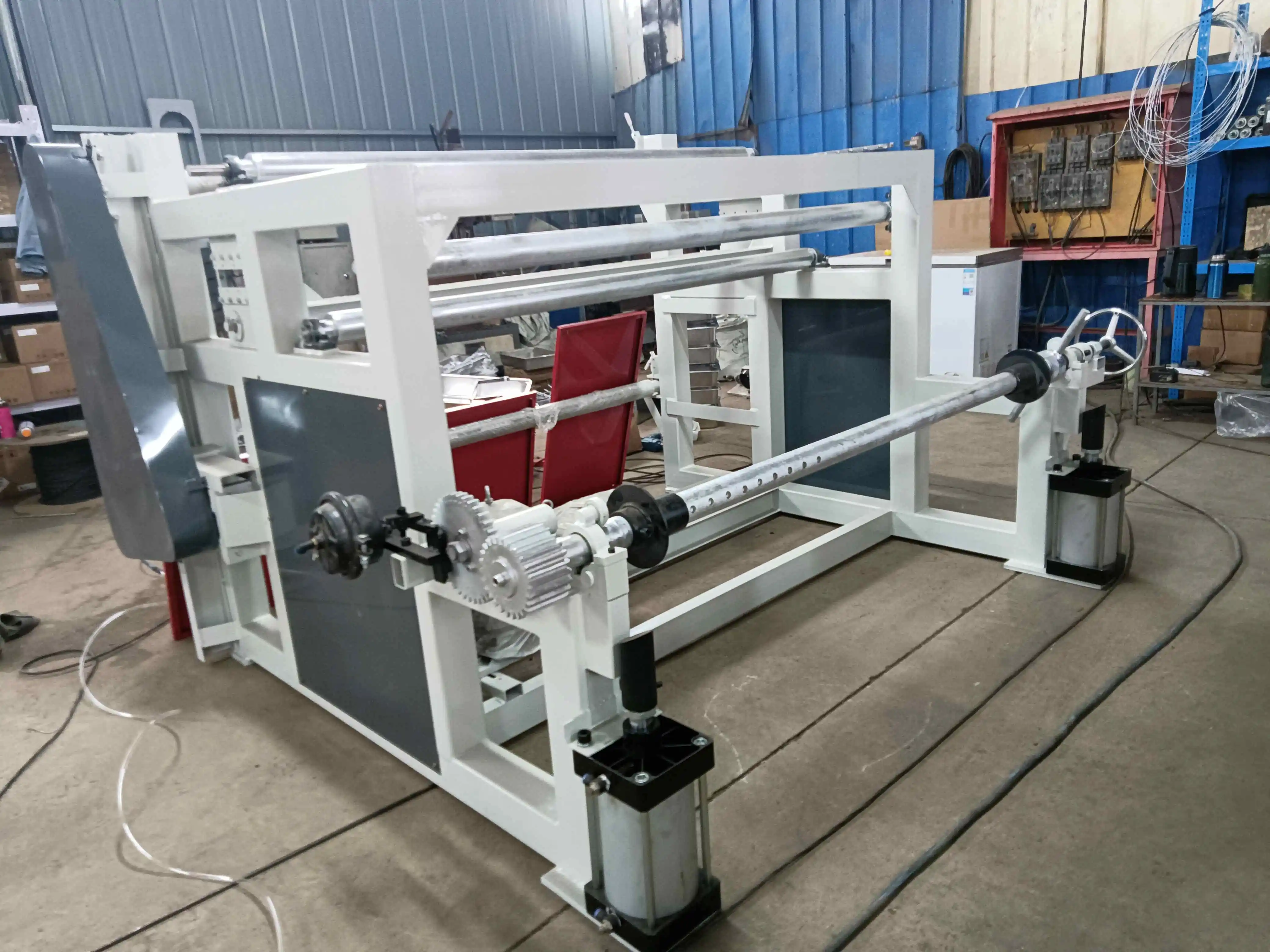

Henan Hengyu Machinery Co., Ltd. presents an industrial-grade Kraft Paper Rewinding Machine engineered specifically for paper tube core raw material processing. This powerful slitting system operates at 300 meters per minute with a minimum slitting width of 40 mm, making it efficient for producing narrow paper strips used in tube manufacturing.It features dual air shaft rewinding technology and can use up to 21 slitting knives to handle paper weights ranging from 80 to 600 grams per square meter.The maximum parent roll width it can process is 1600 mm.The machine is built for one operator, combining electromagnetic speed control with pneumatic tension control to ensure a high-quality output.This affordable solution meets the needs of paper tube factories looking for reliable upstream equipment for kraft paper, yarn tube paper, and coated paper processing.

Technical Specifications

Why Paper Tube Manufacturers Choose This Solution

Purpose-Built for Paper Core Production

This Kraft Paper Rewinding Machine is built for creating narrow paper strips used in paper tube and core manufacturing.It is an essential machine for paper tube factories, converting large rolls into precisely slit materials ready for spiral winding.

The finished slit rolls are ideal for making toilet paper cores, stretch film cores, adhesive tape cores, textile yarn tubes, industrial paper tubes, and packaging paper cores.This design meets the specific needs of tube manufacturers who require consistent strip quality.

Versatile Paper Grade Compatibility

You can maximize production flexibility by using various paper grades.The machine can process kraft paper, yarn tube paper, tea board paper, straw board paper, printing paper, and coated paper.

This versatility allows you to meet different paper tube production requirements without buying multiple machines.Whether you need heavy-duty industrial tubes or lightweight packaging cores, the system handles material variation smoothly.

Double-Knife Precision Cutting Technology

The double-knife slitting system ensures smooth, clean, and flat edges on both sides of each paper strip.These precise cuts are important for paper tube quality because uneven edges can cause problems during spiral winding.

Clean cuts reduce material waste and help prevent paper dust during tube formation.Your downstream processes benefit from materials that feed easily into tube-making equipment.

High-Capacity Narrow Slitting Performance

With a minimum slitting width of 40 mm and the ability to handle up to 21 knife sets, you can produce multiple narrow paper strips at once.
This setup increases productivity compared to single-knife systems.

The precision knife positioning system keeps strip widths consistent across all cutting stations.This helps you produce more finished rolls per parent roll, reducing setup time and material handling.

Advanced Production Features

Dual Air Shaft Rewinding System

The AB dual air shaft design improves rewinding stability and production efficiency.While one shaft is rewinding finished rolls, the other can be getting ready for the next cycle, reducing downtime between runs.

The pneumatic loading system makes roll handling easier and less physically demanding for operators.Finished rolls can be removed without stopping production, leading to a smoother workflow.

High-Speed Output Capability

Operating at speeds up to 300 m/min, this Kraft Paper Rewinding Machine significantly increases your output while maintaining cutting precision. The electromagnetic speed control system provides smooth acceleration and deceleration, preventing tension fluctuations that could affect strip quality.

High-speed operation doesn't compromise safety or accuracy. The pneumatic tension control system automatically adjusts throughout the rewinding process, ensuring consistent roll hardness and preventing telescoping issues.

Single-Operator Efficiency

The simple control system allows one operator to manage the entire production process.The intuitive controls make it easy for new staff to learn, and the machine's reliability means less need for constant supervision.

This streamlined operation greatly reduces labor costs.The open unloading design allows for easier operation, safer roll handling, and faster changeovers, helping make the most of your workforce.

Cost-Effective Investment Benefits

Low Operating Costs

With a power use of just 4 kW, the machine is energy efficient.Your costs stay low even during long runs, improving your profits for each finished roll.

The need for only one operator further cuts labor costs.Combined with low maintenance and strong build, this machine offers a great return on investment for small and large businesses.

Stable Performance and Reliability

The 700 kg steel frame ensures smooth operation at high speeds.All key parts are checked for quality before shipment, giving you confidence in long-term reliability.

The compact size of 2700 × 2300 × 1500 mm allows it to fit well into existing production spaces.Your factory layout can stay flexible while including this essential equipment for paper tube manufacturing.

Ideal Applications for Paper Core Industries

This precision slitting solution is useful in multiple areas of the paper tube manufacturing process.E-commerce packaging companies use it to make cores for protective wrapping materials.Textile manufacturers rely on it for yarn tube production used in spinning.

Food packaging companies process food-grade kraft paper for multi-wall bag production.Industrial packaging operations make heavy-duty tubes for applications like film, foil, and textiles.The machine’s versatility makes it valuable in various paper core manufacturing scenarios.

Frequently Asked Questions

Q1: What paper core sizes can the machine produce?

A: The diameter, thickness, and length can be adjusted as per your needs.One machine can handle multiple paper core sizes, giving you flexibility in meeting customer demands.

Q2: Can it produce toilet paper cores and kitchen towel cores?

A: Yes.This machine is widely used in tissue paper factories to make toilet paper cores, kitchen towel cores, hand towel cores, and jumbo roll cores with consistent quality.

Q3: How many workers are needed to operate the machine?

A: Usually, only 1-2 operators are required.The user-friendly controls and automated features help minimize the number of workers while maintaining high productivity.

Q4: What information should I provide before getting a quotation?

A: Please share details about your production goals, the types of paper tubes you need to make, your available space, voltage requirements, and budget.This helps us provide the best configuration for your needs.

Get Started with Your Paper Tube Production

Ready to use the Kraft Paper Rewinding Machine to enhance your paper tube manufacturing capabilities?  Contact us at doris@hytissuemachine.com to discuss your specific requirements and receive a detailed quotation tailored to your production goals.
