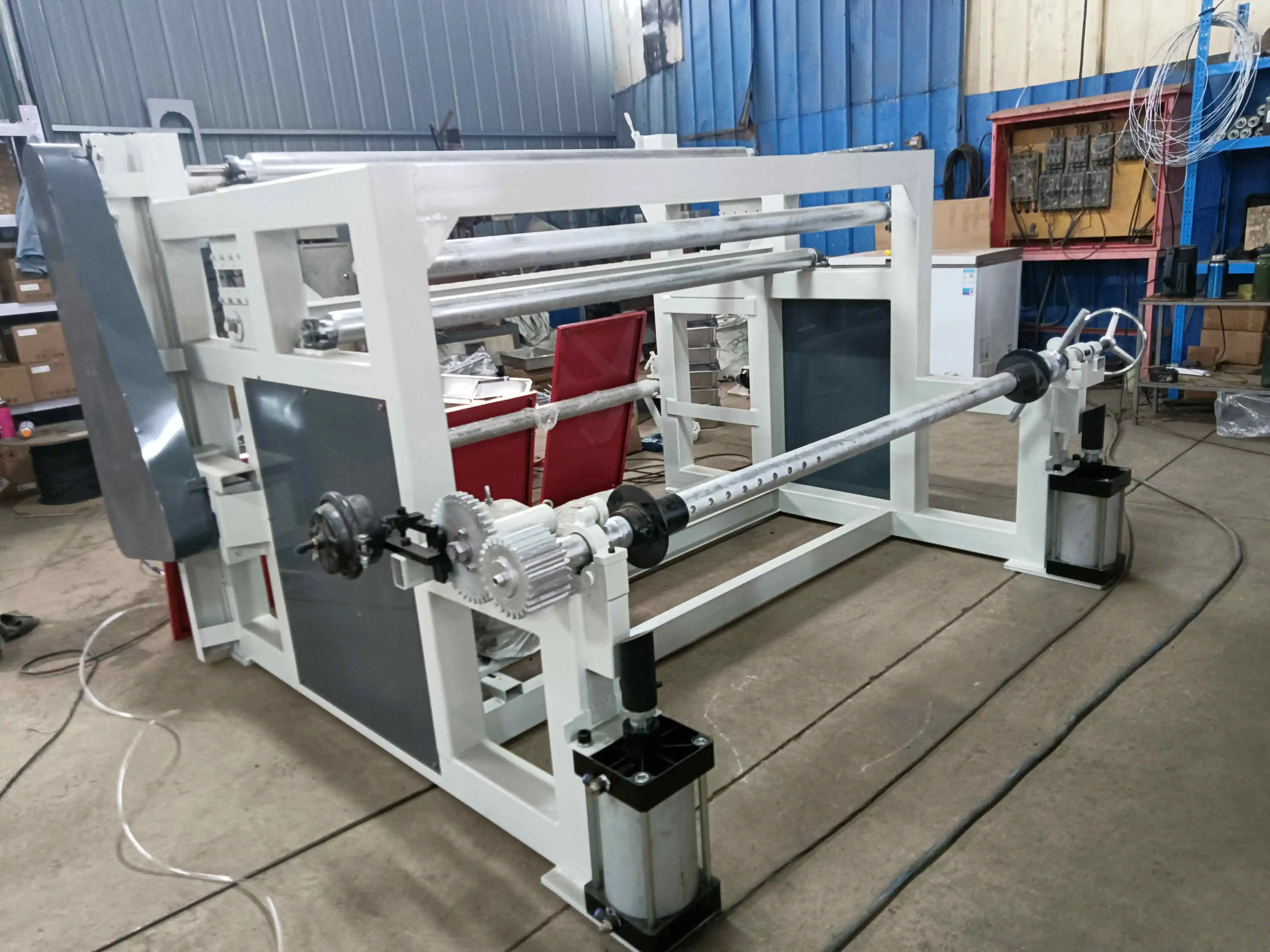

Paper Roll Slitter Rewinder

Paper Roll Slitter Rewinder – High-Speed Industrial Slitting for Paper Tube & Core Production

Henan Hengyu Machinery Co., Ltd. presents an industrial-grade Paper Roll Slitter Rewinder designed for efficient kraft and industrial paper processing. This machine delivers 300 m/min high-speed slitting with a precision minimum slitting width of 40 mm, making it ideal for high-volume production environments. Equipped with hydraulic shaftless loading, automatic web guiding system, and Delta PLC intelligent control, it ensures effortless operation and consistent output quality. The machine features 21 knife sets for flexible production configurations, stable constant-tension rewinding, and handles 80-700gsm kraft and industrial paper. With a maximum unwinding and rewinding diameter of 1300 mm, this product serves as the perfect upstream solution for paper tube, paper core, and toilet paper core manufacturing industries.

Technical Specifications

Key Features & Enterprise-Level Advantages

High-Speed Production up to 300m/min

Your production efficiency matters. This machine operates at speeds ranging from 50 to 300 meters per minute. Continuous industrial operation becomes achievable without sacrificing slitting quality.

The frequency inverter control allows you to adjust speed smoothly. You can match different paper types and production requirements flexibly.

Perfect for Paper Tube & Core Manufacturing

Your finished slit rolls serve multiple downstream applications. They become essential raw materials for paper tube production and toilet paper core manufacturing.

You can also produce stretch film cores, adhesive tape cores, and industrial packaging tubes. This versatility makes the machine an excellent investment for paper tube factories.

Hydraulic Shaftless Loading System

Changing jumbo rolls shouldn't slow you down. The hydraulic shaftless loading device enables quick roll changes without heavy manual labor.

You reduce production downtime significantly. Your operators experience less physical strain during daily operations.

Precision Double-Knife Slitting Technology

Your finished roll quality depends on clean cuts. The double-knife cutting structure delivers smooth paper edges and flat cutting surfaces.

You minimize paper dust generation. This results in better quality for high-grade paper core production.

Automatic Hydraulic Web Guiding

Paper deviation can ruin entire production runs. The hydraulic alignment system continuously monitors and corrects paper position during operation.

You achieve accurate slitting with minimal material waste. Your production consistency improves dramatically.

Large-Diameter Rewinding Capacity

Supporting finished roll diameters up to 1300mm gives you operational flexibility. You reduce the frequency of roll changes throughout your production shift.

Your overall production efficiency increases. You spend more time producing and less time changing materials.

Intelligent Delta PLC Control

The Delta PLC system paired with a color touch screen interface simplifies operation. You can easily adjust slitting width, tension settings, production speed, and roll diameter.

Your operators don't need extensive technical training. Parameter adjustments take seconds rather than minutes.

Stable Constant-Tension Rewinding

The six-point pneumatic braking system maintains consistent tension throughout the entire rewinding process. You get tightly wound and uniform finished rolls every time.

Your downstream processing becomes more reliable. Roll quality remains consistent from the first meter to the last.

Industrial Applications

Paper Core & Tube Manufacturing

This Paper Roll Slitter Rewinder excels in producing raw materials for paper tube factories. You can supply toilet paper cores, kitchen towel cores, and hand towel cores to tissue manufacturers.

Industrial paper cores for stretch films, tapes, and textiles are also within your production range. Your business expands across multiple packaging sectors.

Kraft Paper Processing

Heavy-duty kraft paper from 80gsm to 700gsm processes smoothly on this machine. You can handle tea board paper, straw board paper, and printing paper with equal efficiency.

Your material versatility opens doors to diverse customer segments. You become a reliable supplier for various industrial applications.

Flexible Packaging Supply

Coated paper and specialty papers slit precisely to customer specifications. You can serve flexible packaging manufacturers who demand exact width tolerances.

Your ability to handle 21 different knife set configurations means you can run multiple order specifications without machine changeovers. Production flexibility becomes your competitive advantage.

Heavy-Duty Industrial Construction

Your machine investment should last for years. The reinforced machine frame withstands continuous high-speed operation without vibration or structural fatigue.

High-quality hydraulic systems and transmission components ensure reliable long-term performance. You minimize unexpected downtime and maintenance costs.

The polyurethane rubber rewinding roller provides excellent grip without damaging paper surfaces. Your finished rolls maintain premium quality standards.

Why Choose Henan Hengyu Machinery?

With 20+ years of tissue and paper machinery manufacturing experience, we understand your production challenges. Our Paper Roll Slitter Rewinder combines proven mechanical design with modern automation technology.

We provide comprehensive support from installation to production optimization. Your technical questions receive answers within hours, not days.

Remote installation guidance helps 95% of customers complete setup without on-site engineers. You start production faster and reduce initial investment costs.

Our 1-year warranty and lifetime technical support protect your investment. You operate with confidence knowing expert help is always available.

Frequently Asked Questions

Q1: What paper core sizes can the machine produce?

A: Diameter, thickness, and length can all be adjusted. One machine produces multiple paper core specifications. You gain production flexibility without additional equipment investment.

Q2: Can it produce toilet paper cores and kitchen towel cores?

A: Yes. The machine is widely used in tissue paper factories for toilet paper, kitchen towel, hand towel, and jumbo roll core production. Your tissue manufacturing customers will find this equipment essential.

Q3: How many workers are needed?

A: Usually only 1-2 operators are required. The intuitive control system and automated functions reduce labor requirements. You keep operational costs manageable.

Q4: What causes 'telescoping' in the finished rolls?

A: Improper tension taper settings typically cause this issue. Adjusting the PLC tension curve to decrease as diameter increases resolves the problem. Your machine operator can make these adjustments through the touch screen interface.

Q5: How do I maintain slitting accuracy over time?

A: Regular calibration of the web guiding sensor and periodic blade inspection maintain precision. Replacing worn blades prevents quality degradation. Your maintenance schedule should include these routine checks.

Q6: Can the machine handle rolls with thickness variations?

A: Yes. The automatic tension control system compensates for thickness deviations across the web. You maintain consistent quality even with slightly irregular raw materials.
