Automatic Paper Core Cutting Machine - Industrial Precision Cutting Solution

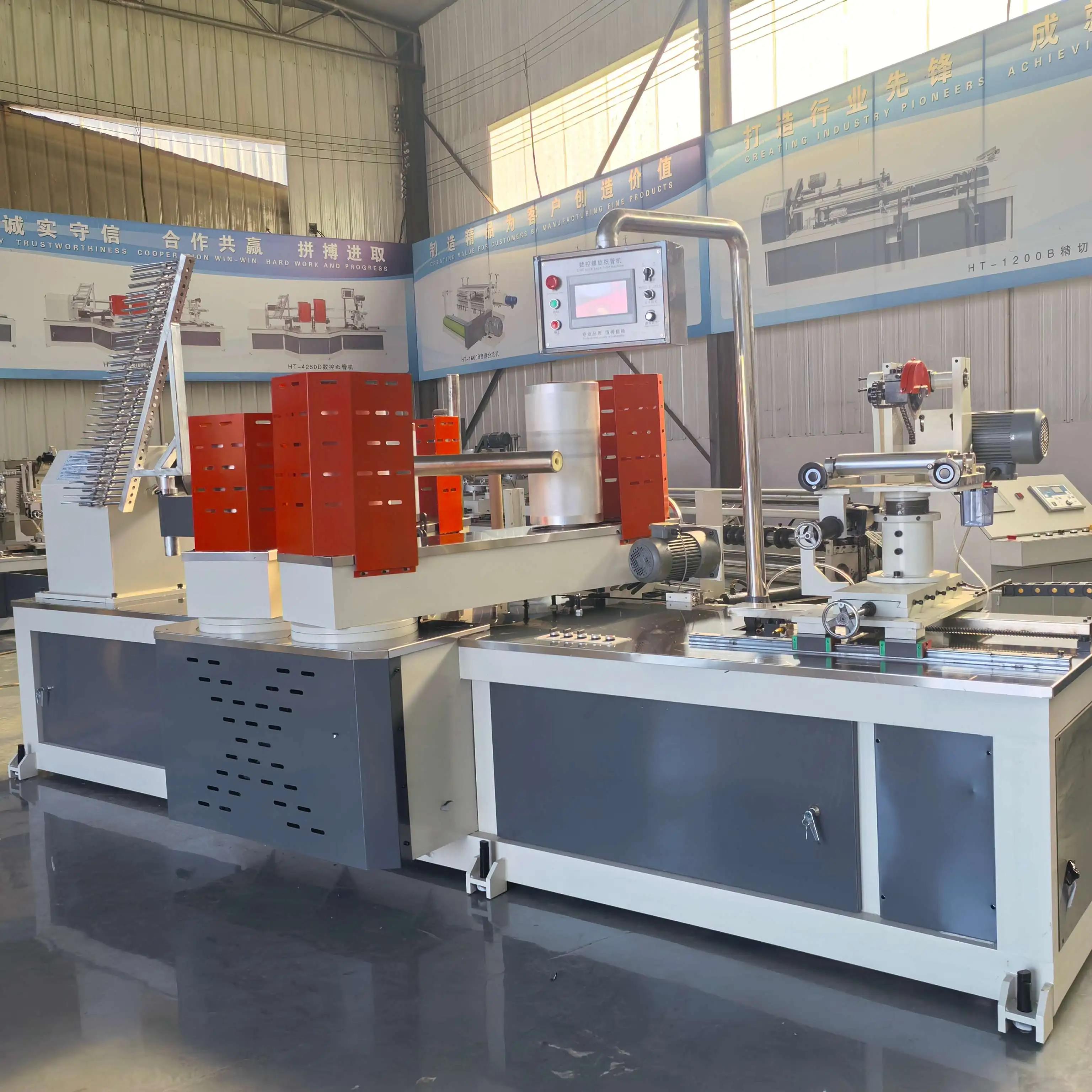

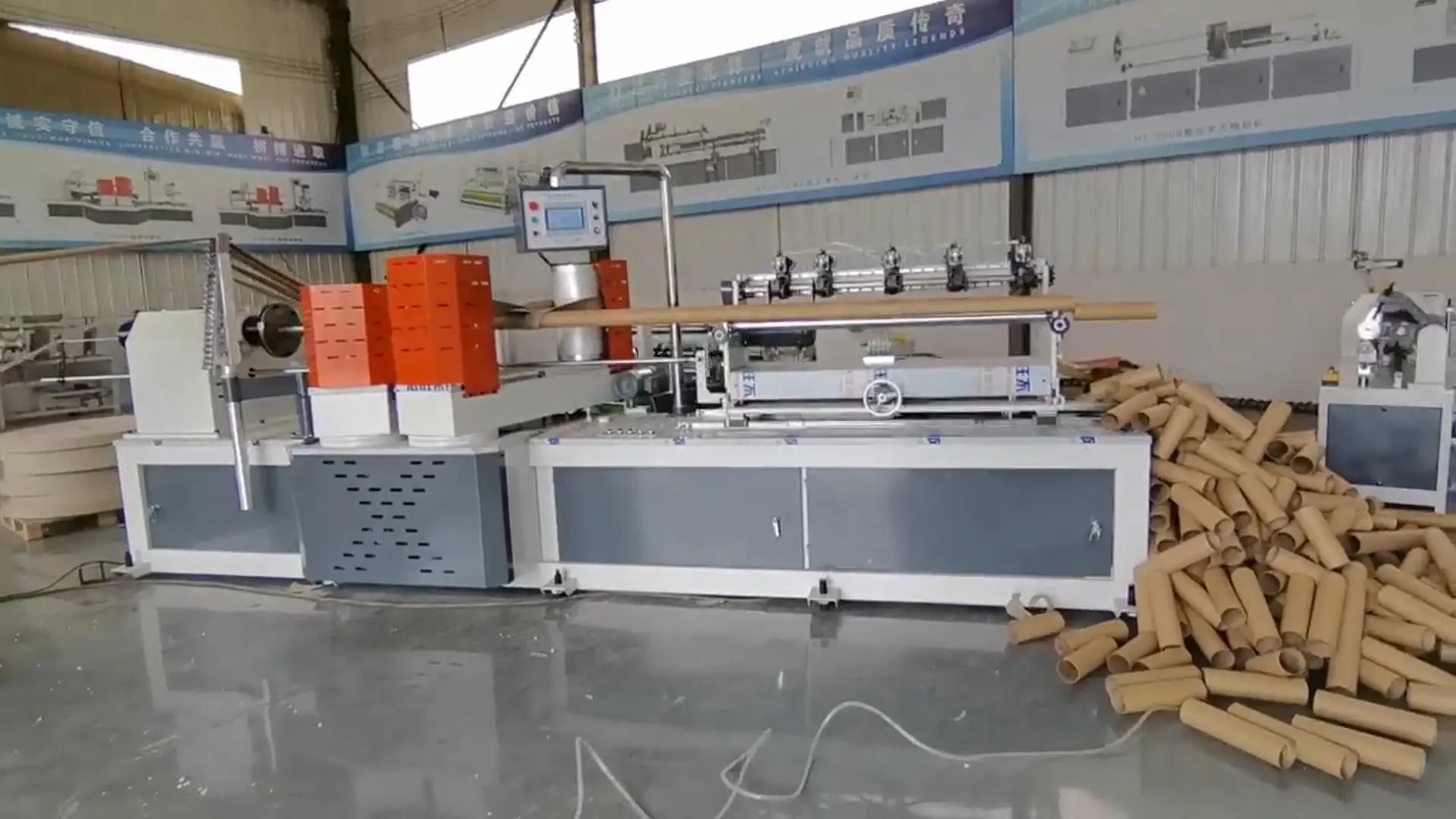

Henan Hengyu Machinery Co., Ltd. presents the HY-4250 CNC Automatic Paper Core Cutting Machine, engineered for industrial-scale core production with unmatched versatility. This advanced system handles paper core diameters from 30-200 mm and wall thickness from 1-12 mm across 3-21 paper plies. Operating at production speeds of 3-30 m/min, the machine features servo synchronous round knife cutting technology and 4-head double belt winding system. With only 15 KW power consumption and requiring just 1-2 operators, it delivers exceptional output efficiency for textile, packaging, and tissue paper industries worldwide.

Technical Specifications

Multi-Diameter Flexibility for Diverse Manufacturing Needs

Traditional paper tube equipment restricts your production options. Our Automatic Paper Core Cutting Machine eliminates those limitations entirely.

You can produce cores ranging from 30mm to 200mm diameter with wall thickness between 1-12mm using a single machine. This flexibility allows you to serve multiple industries without additional capital investment.

Whether you manufacture small adhesive tape cores or large textile yarn tubes, quick diameter adjustments enable rapid product changeovers. Your production facility gains the agility to respond to varying customer demands efficiently.

Precision Servo Cutting Technology

The HY-4250 incorporates servo synchronous tracking cutting with CNC control precision. This advanced system delivers consistent, accurate results across high-volume production runs.

Your finished cores feature smooth cutting surfaces with minimal waste. The precision ball screw drive ensures dimensional accuracy within tight tolerances.

Stable operation at high speeds means consistent quality from the first core to the ten-thousandth. The Automatic Paper Core Cutting Machine maintains performance standards throughout extended production shifts.

Wide Industrial Application Range

Your investment serves multiple manufacturing sectors simultaneously. The machine produces cores for chemical fiber tubes, textile yarn tubes, film cores, stretch film applications, and industrial paper tubes.

Packaging tube manufacturers benefit from the multi-specification capability. Adhesive tape core production achieves the tight tolerances your rewinding operations demand.

Even specialized applications like fireworks tubes fall within this machine's production range. One equipment purchase covers most paper core manufacturing requirements your business encounters.

Integrated Production Efficiency

The HY-4250 combines paper feeding, glue application, paper guiding, tube winding, and cutting into one synchronized process. This integration increases your production efficiency by up to 60% compared with conventional multi-step systems.

Continuous operation eliminates the bottlenecks created by separate stations. Material flows smoothly from raw paper input through finished core output.

Your production line achieves higher throughput with reduced floor space requirements. The streamlined process minimizes handling steps that traditionally consume labor hours.

Intelligent Control System

Delta PLC control paired with a large color touchscreen simplifies operation for your workers. The intuitive interface requires minimal training time.

Encoder length control ensures precise core dimensions batch after batch. Servo tracking cutting adjusts automatically to production speed variations.

The automatic lubrication system maintains optimal mechanical performance without manual intervention. Your maintenance schedules become more predictable with reduced unexpected downtime.

Heavy-Duty Industrial Construction

CNC-cut heavy steel plates form the machine frame through precision welding. This rigid structure delivers low vibration performance even at maximum production speeds.

High stability translates to extended service life and consistent quality output. The industrial-grade construction withstands continuous operation in demanding manufacturing environments.

Your Automatic Paper Core Cutting Machine maintains alignment and accuracy over years of production. The robust design minimizes costly repairs and replacement cycles.

Cost-Effective Labor Requirements

Operating with just 1-2 workers dramatically reduces your labor costs. The automated systems handle repetitive tasks that traditionally required multiple operators.

Your workforce can focus on quality oversight and material management rather than manual cutting operations. This efficiency makes the HY-4250 ideal for manufacturers facing rising labor expenses.

Small and medium-sized businesses gain production capabilities previously available only to large factories. The low operator requirement improves your profitability per production shift.

​​​​​​​Frequently Asked Questions

Q1: What paper core sizes can the machine produce?

A: Diameter ranges from 30-200mm, thickness from 1-12mm, and length is fully adjustable through encoder control. One machine accommodates multiple specifications without equipment changes.

Q2: Can it produce toilet paper cores and kitchen towel cores?

A: Yes. The machine serves tissue paper manufacturers perfectly for toilet paper, kitchen towel, hand towel, and jumbo roll core production across various diameters.

Q3: How many workers are needed to operate the production line?

A: Typically only 1-2 operators manage the entire system. The automated feeding, cutting, and discharge functions minimize manual labor requirements.

Q4: What is the cutting precision level?

A: The servo tracking cutting system maintains dimensional accuracy within tight tolerances, ensuring consistent core lengths suitable for automated rewinding applications.

Q5: How quickly can I change between different core diameters?

A: The machine features tool-less adjustment systems allowing diameter changes in approximately 5 minutes, maximizing your production flexibility.

Q6: What maintenance does the cutting system require?

A: The servo round knife system includes automatic lubrication. Regular blade inspection according to your production volume ensures optimal cutting quality with minimal maintenance downtime.

Contact Us for Your Paper Core Production Solution

Ready to use the Automatic Paper Core Cutting Machine to upgrade your core manufacturing capabilities? Contact Hengyu Machinery today for detailed specifications, pricing, and customization options tailored to your production requirements.
