Kraft Paper Slitting Machine

Kraft Paper Slitting Machine – Industrial High-Speed Roll Converting Solution

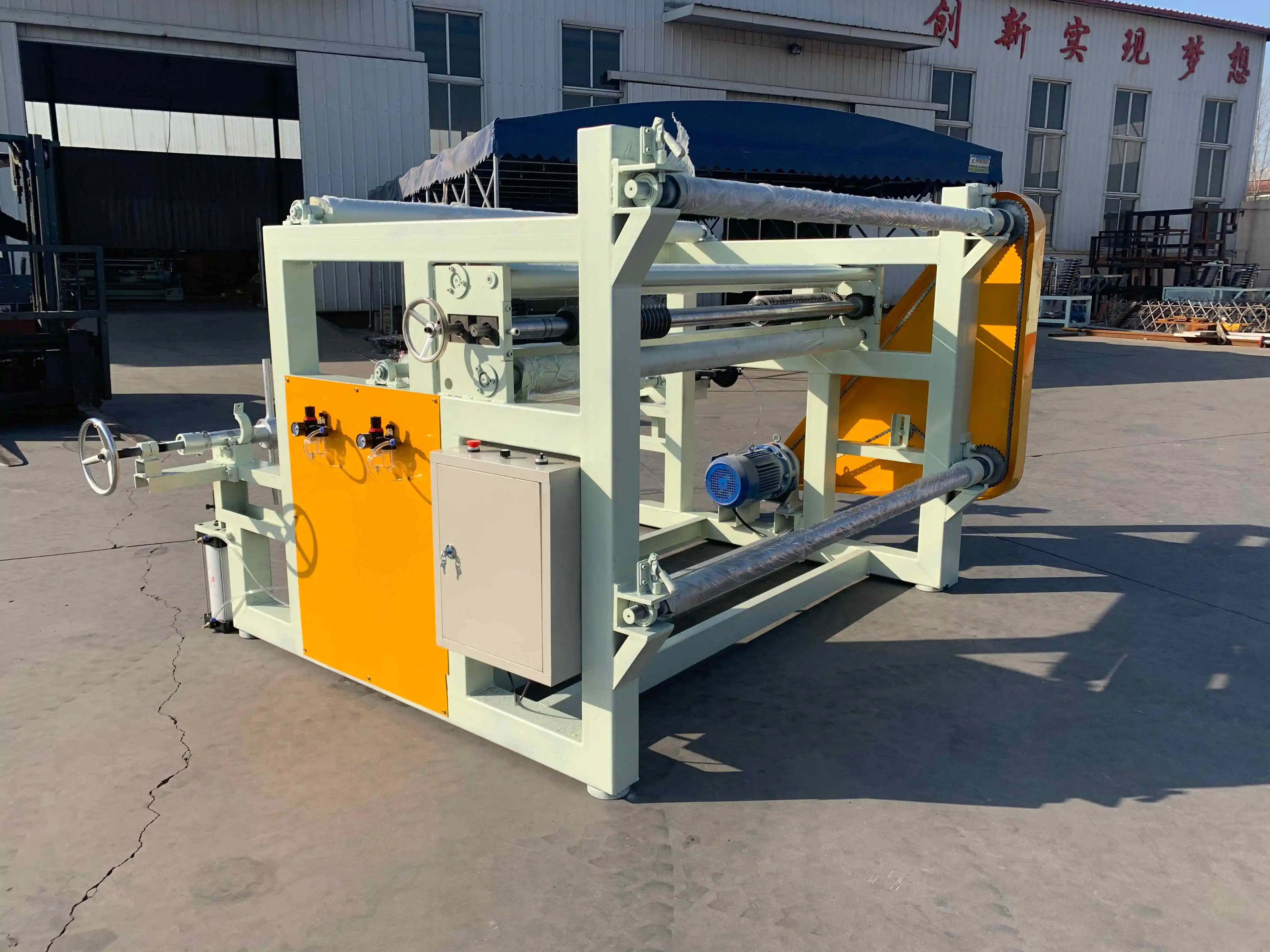

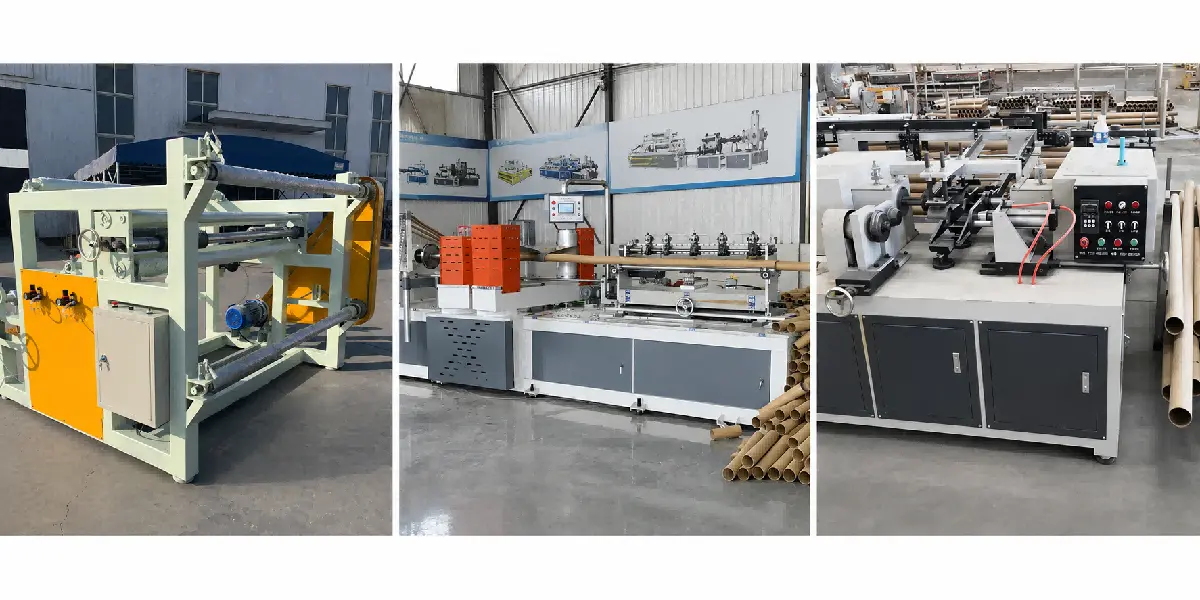

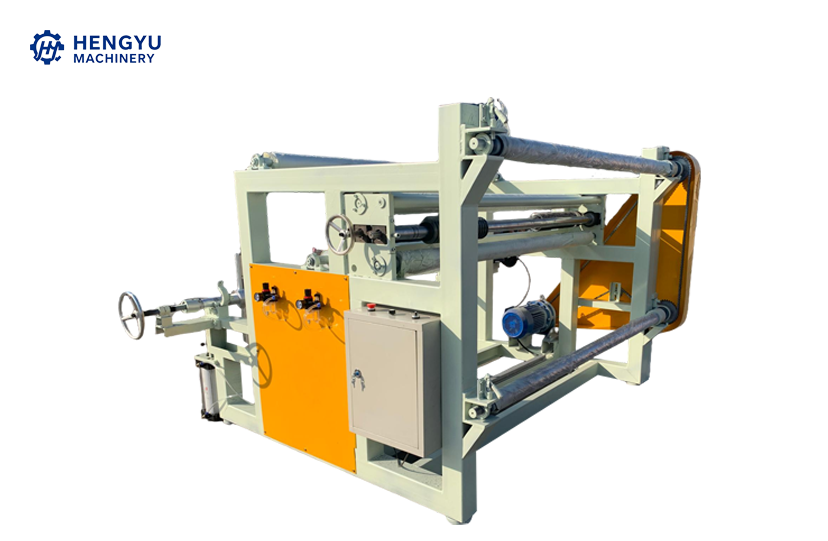

Henan Hengyu Machinery Co., Ltd. presents the HY-1600D Kraft Paper Slitting Machine,a high-quality industrial converting system that is used for making paper tubes and paper cores efficiently.This top-tier machine can operate at a high speed of 300 meters per minute, with the ability to slit paper as narrow as 40 mm and rewind rolls up to 1300 mm in diameter.It comes with a hydraulic shaftless loading system that makes it easy to load large rolls up to 1500 mm in diameter.The system is controlled with Delta PLC and a color touchscreen, and it uses hydraulic automatic web guiding technology.It is built for continuous operation and can process kraft paper that ranges from 80 to 700 grams per square meter, using 21 knife sets, to ensure accurate cutting and even rewinding for use in paper tubes, paper cores, and various industrial packaging applications.

Why Choose Our Kraft Paper Slitting Machine?

In today's fast-paced and highly competitive paper converting industry, you need equipment that delivers speed, accuracy, and reliability.Our product solves common production issues such as wasted material, inconsistent roll quality, and high labor costs.

The machine is equipped with a high-quality hydraulic shaftless loading system that makes loading large rolls much easier, reducing the need for manual lifting.Operators can quickly and easily load materials, saving time and effort.

The intelligent hydraulic web guiding system automatically corrects any off-center movement of the paper during operation.This ensures accurate slitting and helps prevent material waste, helping to maintain stable production even at the highest speeds.

The double-knife slitting technology produces clean, smooth cuts with minimal paper dust, which is especially important when working with kraft paper.Clean cuts result in higher quality finished rolls and reduce the need for maintenance on the machine.

Technical Specifications

Core Performance Advantages

Heavy-Duty Industrial Construction

The machine weighs 4200 kg and has a reinforced frame structure.It uses premium bearings and high-quality transmission components, ensuring long-term, continuous production.This setup reduces the frequency of downtime and lowers maintenance costs.

Intelligent Control System

The Delta PLC control system paired with color touchscreen interface simplifies operation. You can adjust parameters quickly, monitor production in real-time, and change specifications efficiently. Even operators with basic training can master the system within hours.

High-Speed Production Capability

At speeds up to 300 m/min, this Kraft Paper Slitting Machine meets demands of modern large-scale converting factories. The machine maintains stable roll quality even at maximum speed. Your production capacity increases without compromising finished product standards.

Precision Slitting Technology

The upper and lower knife shafts work independently, producing flat paper strips with minimal dust.This cutting quality meets the high standards required for producing paper cores and paper tubes.

Automatic Tension Management

The pneumatic tension control system ensures a consistent winding pressure throughout the process, leading to tightly wound, uniform rolls.Customers receive top-quality products every time.

Large-Diameter Rewinding

The air shaft surface rewinding system allows for rewinding rolls up to 1300 mm in diameter.This feature reduces the need for frequent roll changes and helps maintain continuous production, increasing output with fewer interruptions.

Wide Application Range

The machine can be used across various industrial sectors, including:

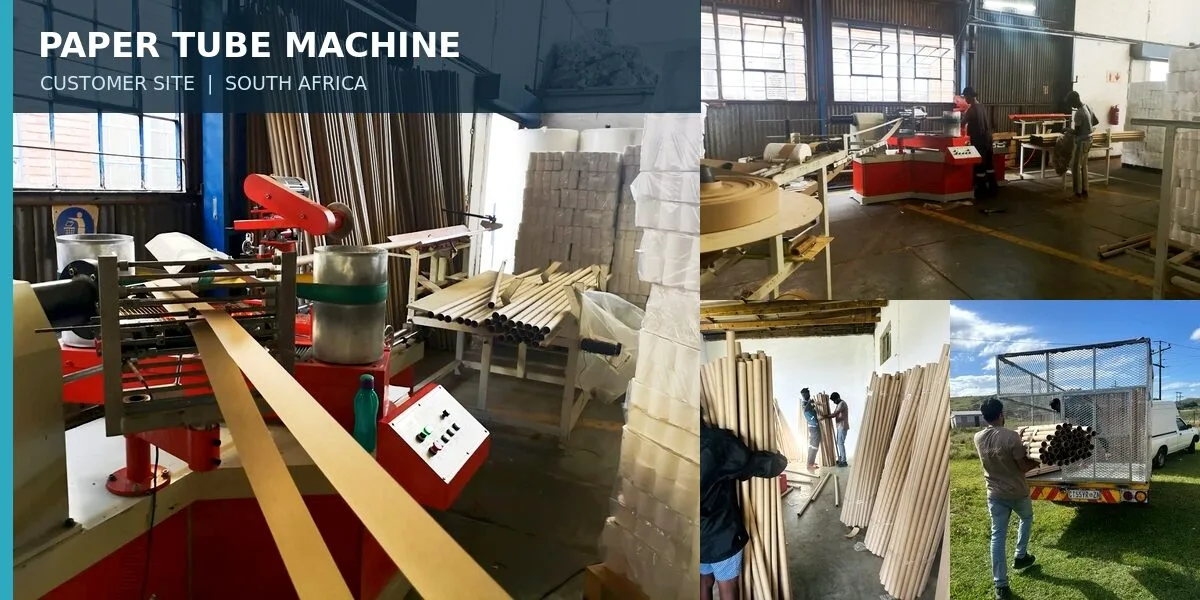

Paper Tube Manufacturing – Useful for creating structural components in the textile, film, and packaging industries

Toilet Paper Core Production – Vital for tissue paper factories worldwide

Adhesive Tape Core Production – Provides precise cores for BOPP tape and masking tape manufacturers

Stretch Film Core Production – Heavy-duty tubes for pallet wrap and packaging film

Packaging Paper Processing – Customized widths for box manufacturing and void-fill materials

Textile Yarn Tube Production – High-strength cores for spinning and weaving mills

Industrial Paper Core Manufacturing – Specialized tubes for aluminum foil, carbon fiber, and technical textiles

The machine handles kraft paper from 80-700 gsm. This versatility means you can serve diverse customer requirements with a single equipment investment.

Why Partner With Hengyu Machinery?

Henan Hengyu Machinery Co., Ltd. has over 20 years of experience in manufacturing tissue and paper converting machinery.We fully understand the day-to-day challenges that come with production.

Our engineering team supports you throughout the entire process, from installation to the life of the machine.Over 95% of our customers complete the installation process through our remote guidance services, saving on-site service costs and maintaining high professional setup standards.

We offer custom options, including choices for electrical components and preferred operating languages.The machine is configured to meet your specific market needs.

Our logistics team handles various delivery terms, including EXW, FOB, CIF, and door-to-door delivery globally.You can rely on us to ensure your shipment arrives safely no matter where you are located.

All machines come with a one-year warranty, including free replacement of non-human-damaged parts.Our 24/7 technical support ensures that your production remains uninterrupted.

Frequently Asked Questions

Q1: What paper core sizes can the machine produce?

A: Diameter, thickness, and length are fully adjustable. One machine produces multiple paper core specifications. You can switch between different sizes quickly to meet varying customer orders.

Q2: Can it produce toilet paper cores and kitchen towel cores?

A: Yes, absolutely. The machine is widely used in tissue paper factories for toilet paper, kitchen towel, hand towel, and jumbo roll core production. The 40 mm minimum slitting width accommodates standard tissue core dimensions.

Q3: How many workers are needed?

A: Usually only 1-2 operators are required. The hydraulic loading system and automatic tension control reduce manual intervention. This lowers your labor costs significantly compared to older manual systems.

Q4: How do you manage dust generated during kraft paper slitting?

A: The precision circular blades minimize fiber shedding during cutting. The machine design allows integration of industrial vacuum systems at slitting stations. This maintains a cleaner working environment and reduces product contamination.

Q5: Can the machine handle thickness variations in recycled kraft paper?

A: Yes. The automatic tension compensation system and differential air shafts adjust for web thickness irregularities. This ensures consistent rewinding quality even with varying material characteristics.

Q6: What maintenance schedule do you recommend?

A: Monthly lubrication of moving parts and quarterly blade inspection maintain optimal performance. The tension sensors should be calibrated monthly or when changing material GSM significantly. Our detailed maintenance manual provides step-by-step procedures.

Get Your Custom Solution Today

Ready to use the Kraft Paper Slitting Machine toenhance your paper converting capabilities? Reach us directly at doris@hytissuemachine.com for professional consultation and competitive pricing.
