Seal And Shrink Packaging Machine

Seal And Shrink Packaging Machine for Commercial Mini Jumbo Rolls

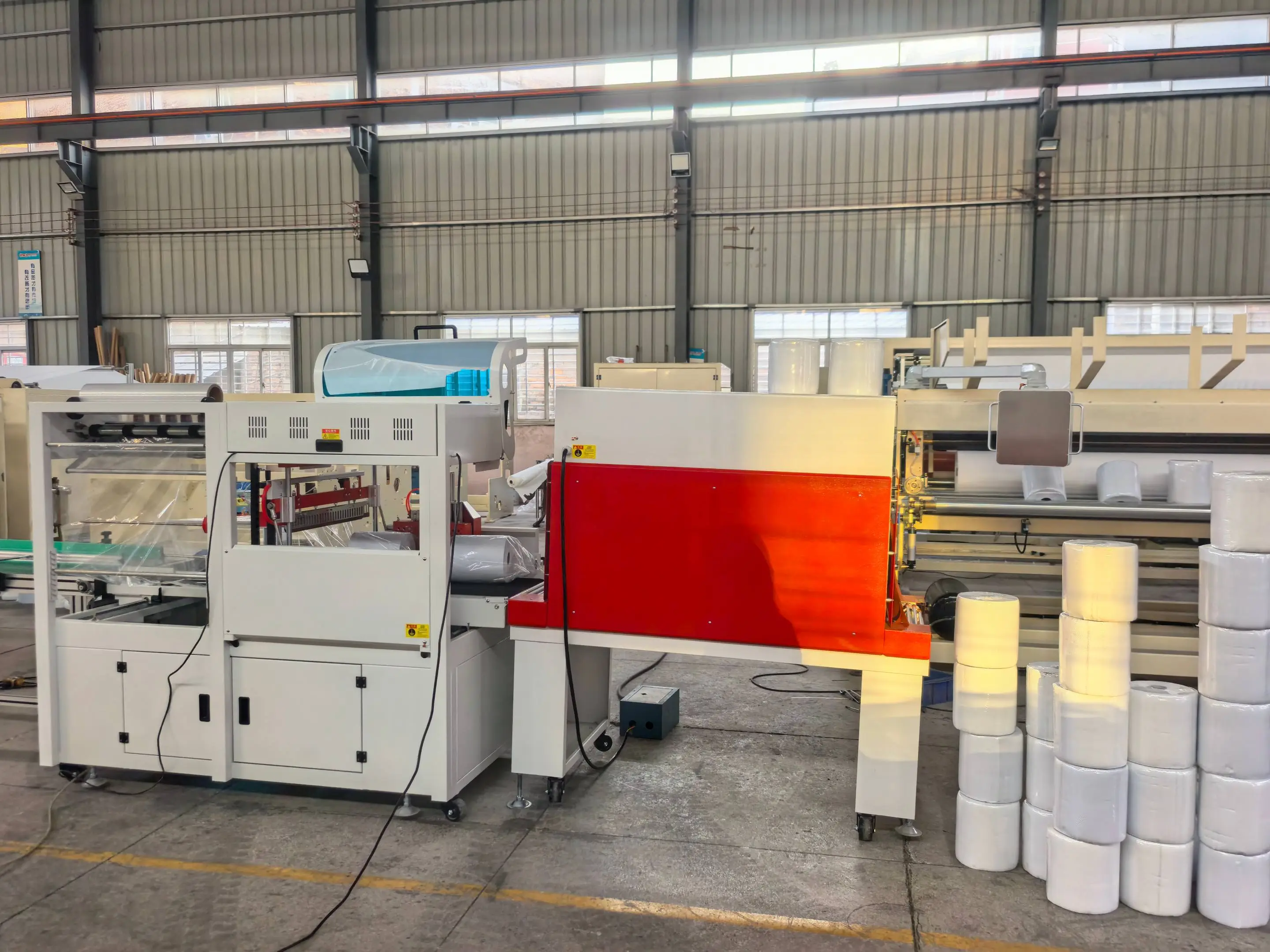

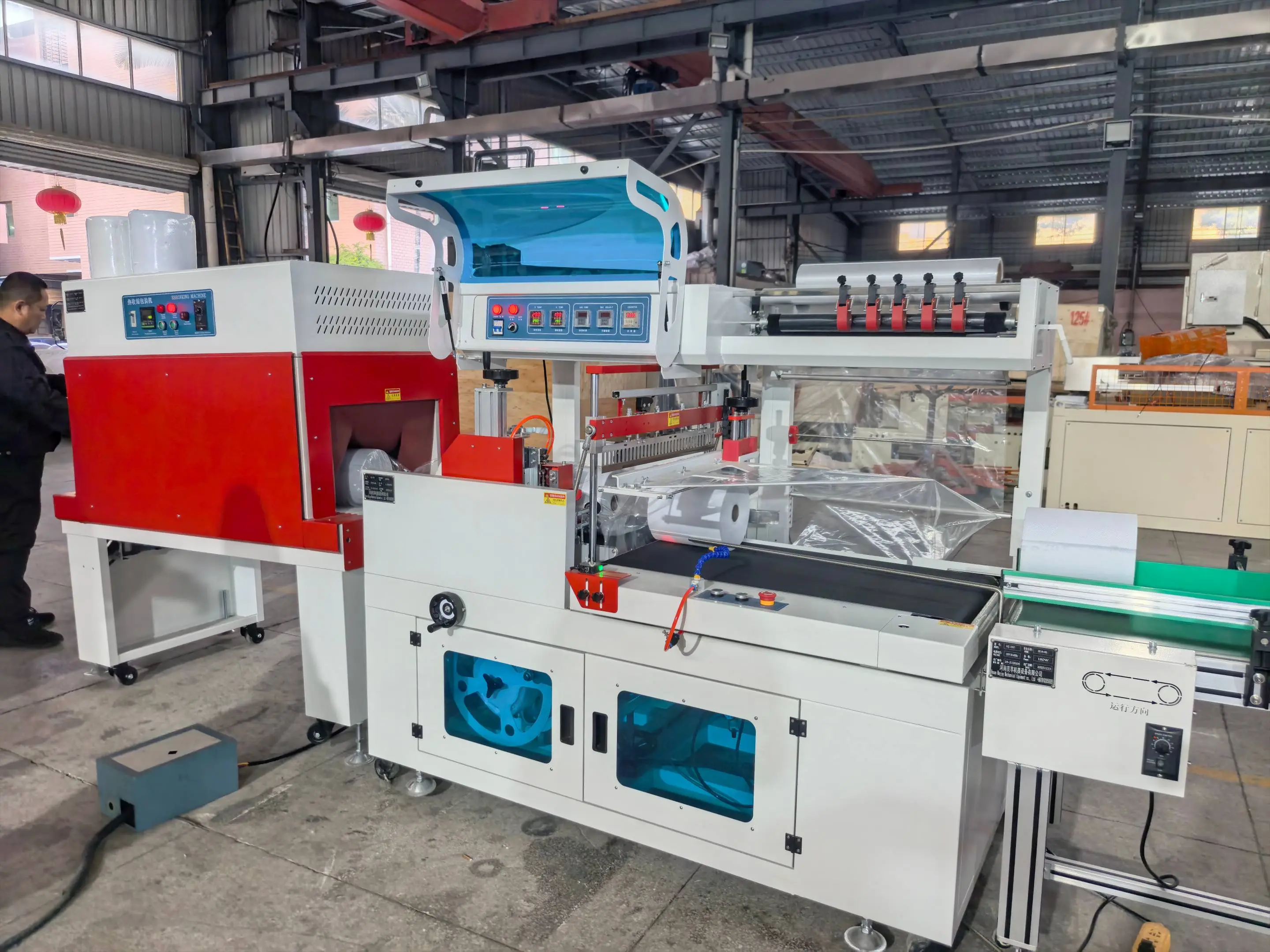

Henan Hengyu Machinery Co., Ltd. introduces its commercial Seal And Shrink Packaging Machine, a professional solution designed specifically for mini jumbo roll packaging. This integrated system combines automatic L-sealing technology with high-performance shrink tunneling, suitable for commercial toilet tissue rolls with diameters ranging from 150mm to 300mm. The HY550 L-sealer operates at speeds of 15–30 packs per minute, while the HYP5035SL shrink tunnel delivers uniform heat distribution across a 1200 × 500 × 350mm chamber. With 1.26 kW sealer power and 13 kW tunnel capacity, this continuous automatic operation significantly reduces packaging material costs compared to pre-made bag solutions. The system supports custom packaging formats and delivers professional moisture-resistant wrapping ideal for hotels, airports, and institutional tissue suppliers.

Why This Seal And Shrink Packaging Machine Transforms Your Production Line

Precision Engineered for Commercial Tissue Products

This packaging system targets the commercial tissue segment with surgical precision. You're not wrapping delicate retail items—you're securing industrial-grade janitorial rolls that must survive warehouse handling and bulk distribution.

The machine accommodates unlimited product lengths. Your 250mm diameter centerfeed rolls package with the same efficiency as your 180mm mini jumbos. No die changes. No mechanical reconfiguration.

Cost Reduction Through Material Innovation

Traditional pre-made bag systems trap you in a supply chain cycle. Custom bag orders require minimum quantities. Specifications change? You're ordering new inventory.

Shrink film transforms that equation. POF and PE films cost 40–60% less per unit than fabricated bags. You purchase standard film rolls. The machine creates the package dimensions in real-time.

Storage footprint shrinks proportionally. A single pallet of film replaces an entire bay of custom bags.

Automation That Respects Your Labor Budget

Manual wrapping ties operators to repetitive motion injuries and inconsistent output. Semi-automatic solutions still require hand-feeding and supervision.

This Seal And Shrink Packaging Machine operates with photoelectric detection. Rolls enter the infeed conveyor. OMRON sensors trigger the sealing cycle. AIRTAC pneumatic actuators execute the cut. The shrink tunnel completes the process.

One operator monitors multiple production streams. Your labor allocation shifts from task execution to quality oversight.

Industrial Reliability in Core Components

Teflon-coated sealing blades eliminate carbon buildup and smoking issues common in budget systems. The coating maintains integrity through 500,000+ cycles before replacement.

Chain roller conveyors handle 25kg loads without belt slippage or tracking errors. Variable speed control from 0–15 m/min synchronizes with upstream cutters and downstream cartoning equipment.

PID temperature controllers maintain ±2°C stability across the tunnel length. Uniform heat distribution prevents the "fish eye" defects and incomplete shrinkage that plague single-zone tunnels.

Technical Specifications

HY550: Automatic L-Sealer

HYP5035SL: Shrink Tunnel

Application Scenarios Across Commercial Sectors

Hospitality and Institutional Supply

Hotels and conference centers require bulk packaging that protects product integrity during storage. The shrink wrap creates a moisture barrier superior to paper band wrapping.

Export and International Distribution

Customs inspections and container condensation threaten unwrapped tissue products. The sealed film package provides tamper-evidence and environmental protection through multi-modal transport.

Wholesale and Cash-and-Carry Operations

High-volume retailers demand packaging that withstands repeated handling. Shrink film resists tearing and maintains barcode legibility through the distribution cycle.

Contract Manufacturing Operations

Private label producers need packaging flexibility without capital investment in custom tooling. Quick size adjustment via handwheel allows format changes between production runs in under five minutes.

Integration and Workflow Optimization

Upstream Connection Capabilities

The infeed conveyor height adjusts to match your existing log saw or rewinder discharge elevation. Mounting brackets accommodate standard 38mm and 50mm frame tubing.

Photoelectric sensors communicate with upstream equipment via relay contacts or PLC protocols. Production stops trigger automatic sealing cycle suspension to prevent film waste.

Downstream Compatibility

The discharge conveyor integrates with automatic cartoning machines, robotic palletizers, or manual packing stations. Adjustable discharge height accommodates various secondary packaging equipment.

Case packers synchronize with the shrink tunnel discharge using product detection signals. Your entire line operates as a coordinated system rather than isolated stations.

Operational Advantages That Compound Over Time

Format Flexibility Without Tooling Investment

Package dimensions adjust through digital controls and mechanical handwheels. You're not locked into fixed formats determined by cutting dies or pre-made bag dimensions.

Market demands shift? Holiday promotional bundles? Export packaging requirements? Your machine adapts without engineering consultation or parts orders.

Professional Packaging Aesthetics

Shrink film conforms to the cylindrical geometry of tissue rolls. The finished package presents clean surfaces for label application and brand messaging.

Tight film tension prevents roll telescoping during transport. Your products arrive at retail locations in the same condition they left your facility.

Reduced Environmental Footprint

Thinner gauge films deliver equivalent protection to thicker pre-made materials. You're reducing petroleum-based material consumption per unit while maintaining package integrity.

Film recyclability exceeds multi-layer laminated bag structures. Your packaging aligns with corporate sustainability initiatives and evolving regulatory requirements.

Frequently Asked Questions

Q1: Should I choose semi-automatic or fully automatic equipment?

Base your decision on labor costs and target output volume. Semi-automatic systems suit operations under 10,000 units daily with low wage environments. Fully automatic configurations justify investment when labor exceeds $8/hour or production targets exceed 15,000 units per shift.

Q2: Can this packaging machine connect with my existing production line?

Yes. The system integrates with toilet paper cutters, log saws, conveyors, and cartoning equipment. Provide your current conveyor height and control signal specifications for connection planning.

Q3: What packaging formats can this system produce?

The machine handles single rolls, multi-roll bundles, and custom promotional packs. Toilet paper, kitchen towels, hand towels, and centerfeed rolls all package with format-specific film folder adjustments.

Q4: What information do you need for a detailed quotation?

Specify your product type (mini jumbo toilet rolls, commercial towels, etc.), roll dimensions (diameter and width), target production capacity (packs per hour), available factory voltage, and preferred film type (POF or PE).

Q5: Why does my seal line turn black or produce smoke?

This indicates Teflon coating degradation or incorrect temperature settings. Clean the sealing blade weekly and verify temperature calibration. Replacement Teflon tape is a standard maintenance consumable.

Q6: How do I fix uneven shrinking across my product?

Adjust the tunnel's internal air deflectors to balance heat distribution. Verify that conveyor speed matches the tunnel temperature profile. Products spending insufficient time in the heated zone exhibit incomplete shrinkage.

Partner With Hengyu for Complete Production Solutions

Ready to reduce your packaging costs while improving Seal And Shrink Packaging Machine presentation? Contact our technical team at doris@hytissuemachine.com to discuss your specific requirements.
