L Sealer With Shrink Tunnel – Professional Toilet Paper Packaging Solution

Modern tissue manufacturing demands efficient packaging systems that combine speed, reliability, and cost-effectiveness. Henan Hengyu Machinery's L Sealer With Shrink Tunnel delivers enterprise-grade automation for commercial toilet paper roll packaging. This system is made for making a lot of tissue products quickly.It can run automatically without people watching, and it can make up to 30 packages every minute.The HY-650 automatic L-bar sealer works with products of any length and can handle heights up to 300 mm.The HYP6040SL shrink tunnel has a size of 400 by 300 mm and makes sure the packaging is done consistently.By using standard POF and PE shrink films, the system saves money on packaging materials and doesn’t need expensive pre-made bags.It’s great for big rolls and industrial tissue packaging.The system makes packages that are hard to open without breaking and protect against dust.These packages meet the standards for selling in stores and shipping to large buyers.

Why This System Transforms Tissue Paper Packaging

Designed for Commercial Tissue Products

This product is designed to wrap various types of tissue rolls, including commercial toilet paper rolls, large jumbo toilet rolls, industrial wiping rolls, and centerfeed tissue rolls.Its high-clearance design allows it to handle bigger and bulkier tissue formats that regular packaging machines can't manage.

Tissue converters can use this machine for different product lines.It can process various roll sizes with minimal setup and adjustment.

Fully Integrated Automation

The system automatically completes product detection through photoelectric sensors, film wrapping, L-bar sealing, heat shrinking, and finished package output. This eliminates manual handling at every packaging stage.

You achieve continuous operation with minimal supervision. The unmanned workflow allows your staff to focus on production monitoring rather than repetitive packaging tasks.

Cost-Efficient Film Usage

Unlike rigid box packaging or pre-formed bags, this system uses economical shrink film. PE, POF, PVC, and PP film options provide material flexibility based on your budget and performance requirements.

The tight-wrapping process minimizes film consumption per package. You reduce packaging material expenses by 30-40% compared to traditional methods while maintaining professional presentation.

Technical Specifications

HY-650 Automatic L-Sealer

HYP6040SL Shrink Tunnel

Key Operational Advantages

Quick Size Changeover System

Product dimension adjustments require only simple handwheel manipulation. You avoid disassembling major components when switching between toilet paper roll sizes.

This design minimizes downtime between production runs. Your facility maintains higher overall equipment effectiveness throughout multi-product manufacturing schedules.

Professional Retail-Ready Packaging

The heat shrink tunnel creates tight, transparent wrapping that showcases your product quality. The finished packages resist dust accumulation and moisture exposure during storage and transportation.

Your commercial tissue rolls arrive at retail locations or distribution centers in pristine condition. The professional appearance enhances brand perception and reduces product returns.

Unlimited Length Capability

Unlike conventional packaging machinery with fixed dimensions, this L Sealer With Shrink Tunnel accommodates products of any length. You package standard retail toilet rolls and extended commercial formats on the same equipment.

This versatility future-proofs your packaging investment. As market demands shift toward larger or smaller tissue products, your system adapts without capital equipment replacement.

Integration With Tissue Production Lines

Seamless Line Connection

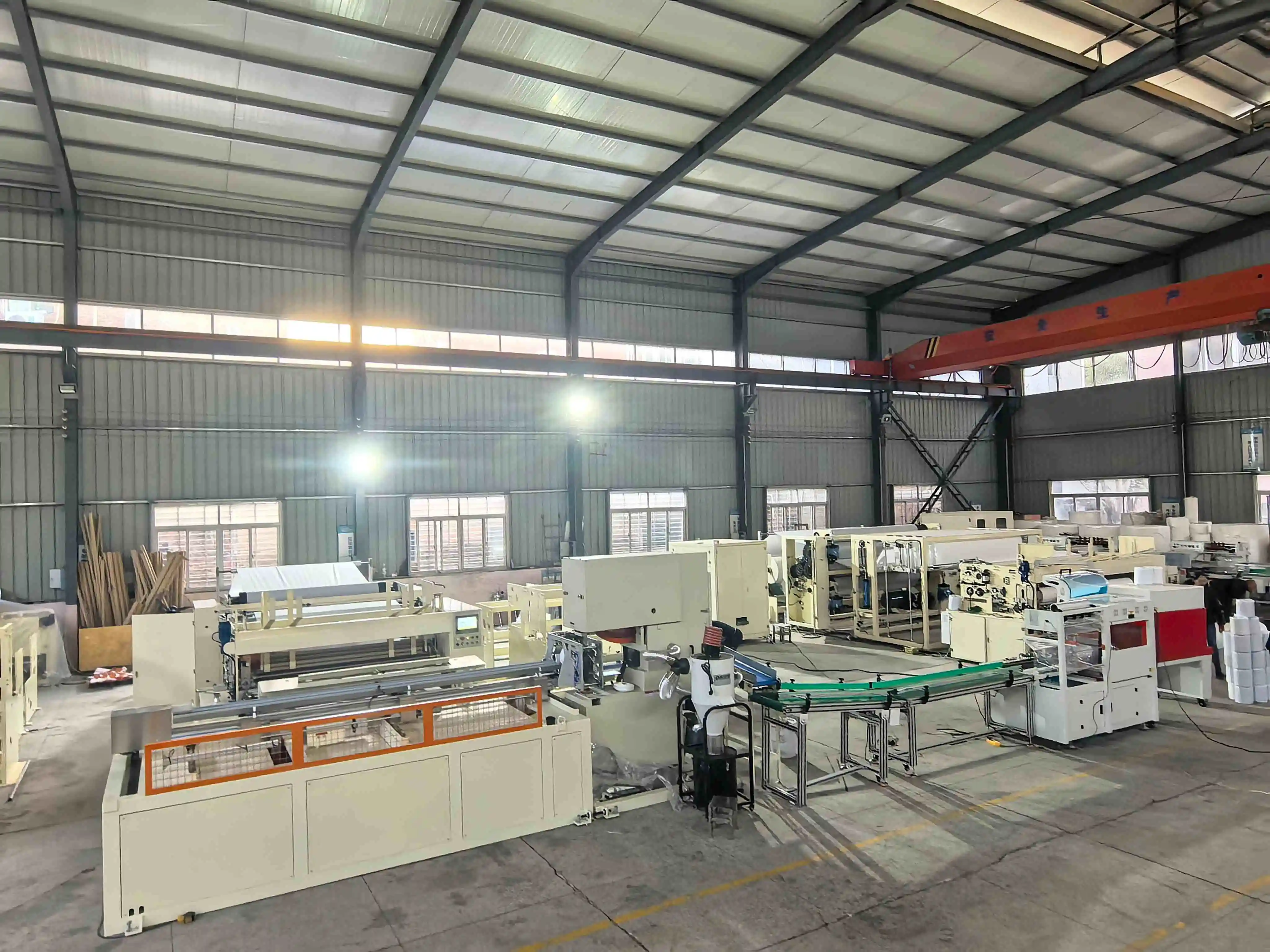

The system interfaces directly with toilet paper rewinding machines, automatic cutting units, and product conveyors. Synchronized operation eliminates bottlenecks between production and packaging stages.

You establish continuous flow from parent roll conversion through finished package palletizing. The integrated approach maximizes your facility's throughput capacity.

Automatic Product Detection

Photoelectric sensors identify incoming products and trigger sealing operations automatically. The precision timing ensures consistent seal placement regardless of production speed variations.

This technology eliminates manual package positioning. Your operators no longer manually align products, reducing labor fatigue and repetitive motion injuries.

Industrial Durability Features

Robust Construction Standards

The L-sealer frame utilizes powder-coated carbon steel for chemical resistance in industrial tissue environments. High-wear components feature stainless steel construction for extended service life.

You achieve consistent performance across multi-shift operations. The durable design maintains packaging quality specifications throughout years of continuous production.

Teflon-Coated Sealing Elements

The sealing bar incorporates Teflon coating to prevent film adhesion and eliminate toxic smoke emission. This engineering choice protects both product quality and operator health.

Film release remains smooth across extended production runs. You avoid frequent cleaning interruptions that reduce effective operating time.

Typical Applications for Tissue Manufacturers

Commercial Toilet Paper Production

Large-format toilet rolls for institutional facilities, hospitality venues, and commercial restrooms require professional packaging that withstands warehouse storage and distribution handling.

Industrial Wiping Roll Packaging

Manufacturing facilities and janitorial supply distributors need robust packaging for heavy-duty wiping rolls. The system's 50 kg maximum load capacity accommodates these demanding applications.

Export and Wholesale Distribution

International tissue exporters benefit from moisture-resistant, tamper-evident shrink wrapping. The L Sealer With Shrink Tunnel packages maintain product integrity throughout container shipping and customs inspection processes.

Quality Control Measures

Before shipment, each unit undergoes seal strength testing to verify film fusion integrity. Tunnel thermal uniformity receives infrared thermography evaluation to eliminate cold spots that cause uneven shrinkage.

Safety sensors, particularly anti-cutting photo-eyes on the L-bar, are tested to prevent operator injury. Electrical components meet IP54 ratings for protection against dust and moisture in industrial environments.

Your investment arrives ready for production with documented performance verification. We provide complete test reports with each system delivery.

Getting Started With Your Packaging Solution

To recommend the optimal configuration for your tissue production needs, please provide:

• Which tissue products you manufacture (toilet paper, kitchen towel, commercial rolls)
• Your target daily production capacity
• Available factory floor space
• Current packaging method and pain points
• Voltage requirements for your location

Our application engineers analyze your specific requirements and propose customized solutions that maximize your return on investment.

Frequently Asked Questions

Q1: Semi-Automatic or Fully Automatic – Which Should I Choose?

Choose based on your budget, labor cost, and production target. Semi-automatic systems offer economical entry points for smaller operations. Fully automatic configurations save labor expenses and increase output for high-volume manufacturers.

Q2: Can This L Sealer With Shrink Tunnel Connect With My Existing Production Line?

Yes. The system connects directly with tissue cutters, conveyors, wrapping machines, and cartoning equipment. Our engineering team provides integration guidance specific to your facility layout.

Q3: What Packaging Formats Can Be Produced?

The system handles toilet paper, kitchen towel, facial tissue, hand towel, napkin tissue, pocket tissue, soft packs, cartons, shrink packs, and multi-roll bundles. We customize configurations according to your market requirements.

Q4: Why Does Film Sometimes Tear at the Seal Line?

This typically results from excessive sealing temperature or insufficient cooling time. Adjust the PID controller settings or inspect the Teflon tape for wear. Our technical support team provides troubleshooting assistance.

Q5: How Do I Eliminate Corner Wrinkles on Packages?

Adjust the tunnel's fan speed and airflow direction to ensure heat reaches corners first. Slightly increasing tunnel temperature also resolves this issue. Contact our team for specific parameter recommendations.

Contact Hengyu Machinery Today

Ready to use the L Sealer With Shrink Tunnel to upgrade your tissue packaging operation? Contact our packaging specialists at doris@hytissuemachine.com for detailed technical consultation, quotation, and application guidance.
