Paper Roll Packing Machine

Paper Roll Packing Machine for Toilet Paper Log Protection

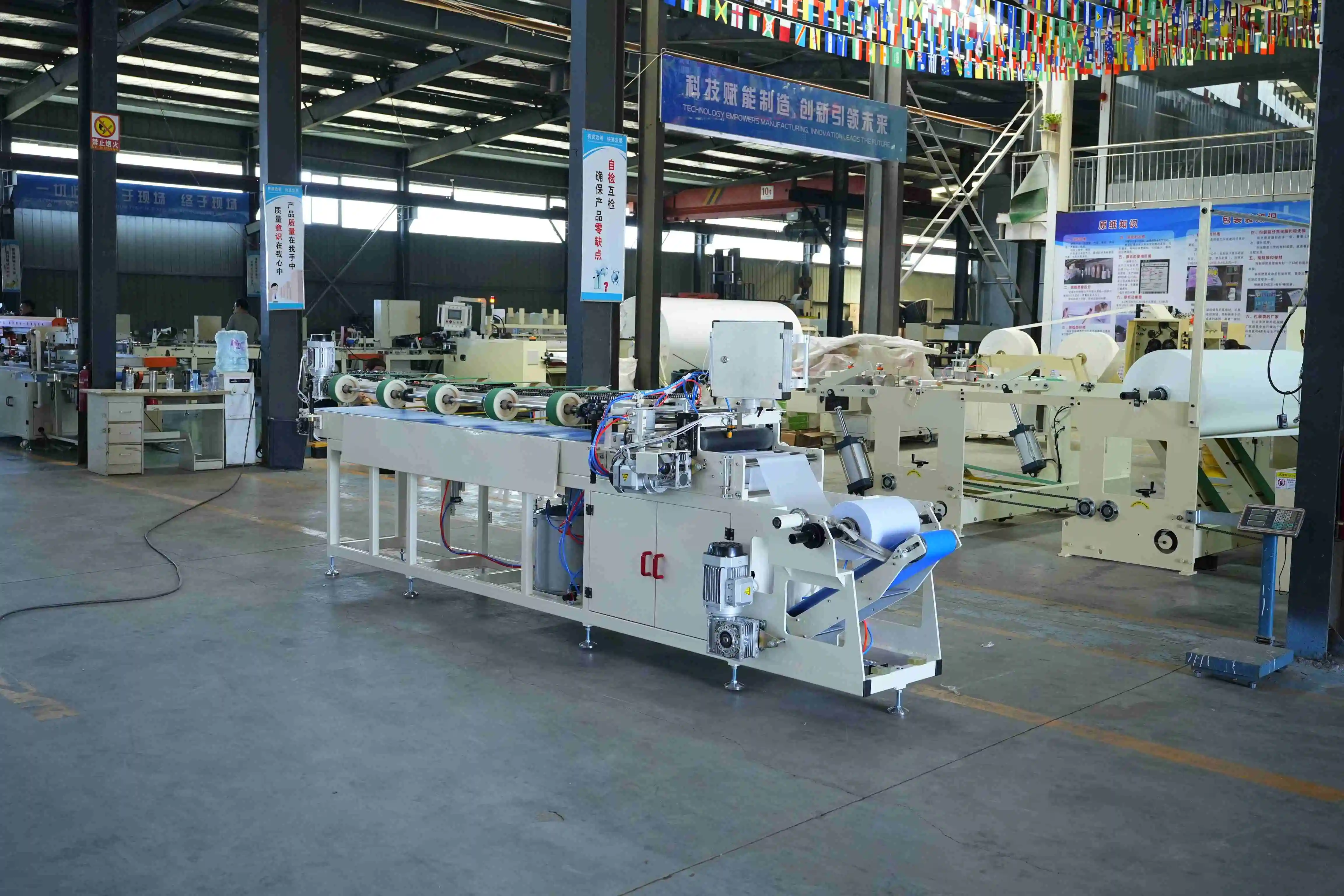

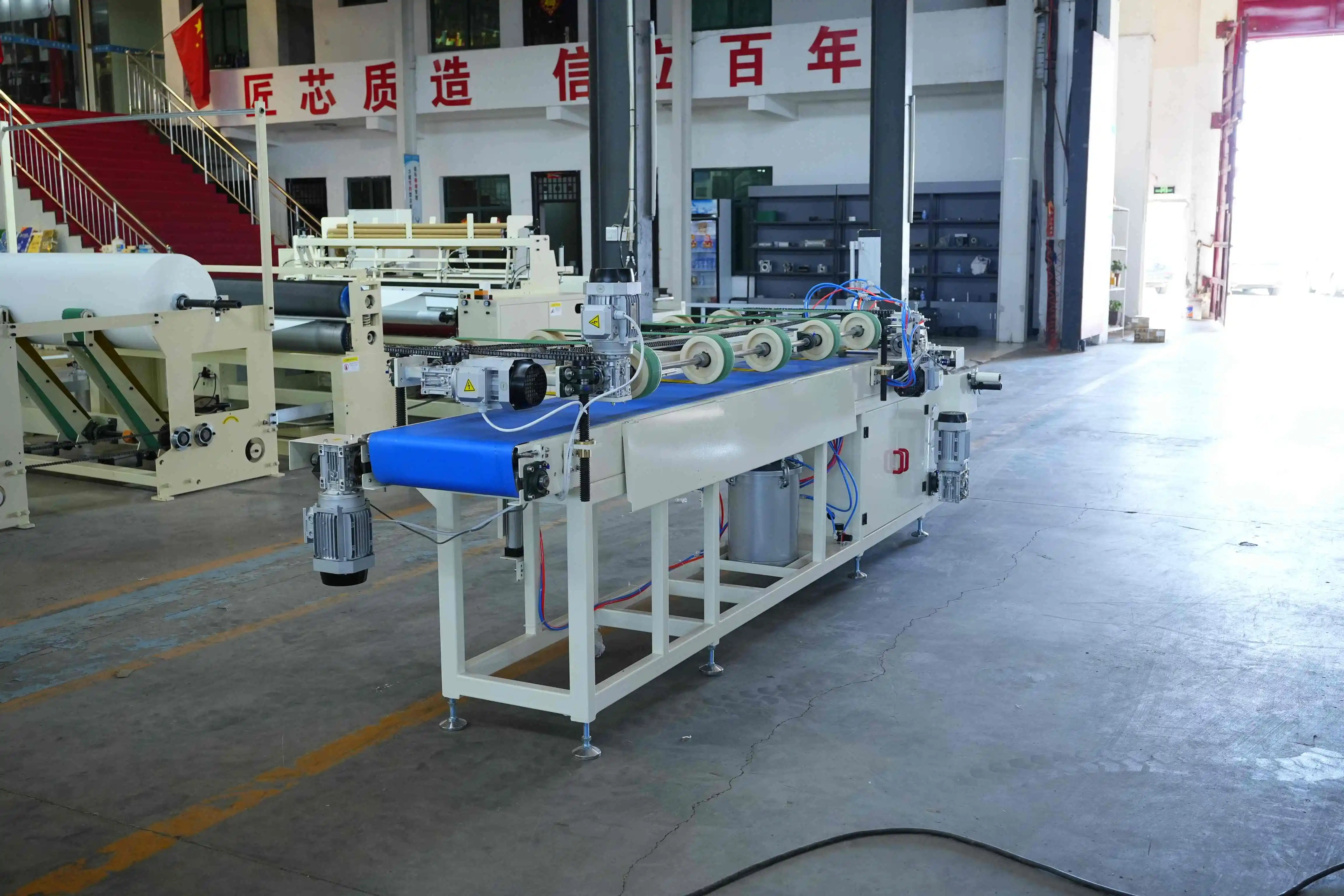

Henan Hengyu Machinery Co., Ltd. introduces the HY-60 Paper Roll Packing Machine, a special tool that wraps toilet paper logs in kraft paper before they are cut.This semi-automatic system can wrap 5–7 logs every minute using eco-friendly kraft paper that has a thickness of 45–60 GSM.This helps cut down on packaging costs compared to using shrink film.The HY-60 is made for the Central Asian and CIS markets, such as Kazakhstan, Uzbekistan, Russia, and Kyrgyzstan.It offers strong protection against dust and moisture during storage and transportation.The machine uses an independent motor system, uses 6.3 kW of power, and has compact dimensions of 5150 × 2170 × 1500 mm.It is efficient and eco-friendly, making it a good option for tissue manufacturers who want affordable and sustainable packaging solutions.

Why Central Asian Markets Prefer Kraft Paper Log Packaging

Kraft paper wrapped logs are still the main type of packaging used in Kazakhstan, Uzbekistan, and nearby areas.This is because of three main reasons.

Cost Savings: Kraft paper is 30–40% cheaper than plastic shrink film or other packaging films.This can lead to big savings over the year for manufacturers who produce 50–100 tons of product each month.

Market Acceptance: Distributors and wholesalers in these regions have well-established systems that are suited for kraft paper wrapped logs.The consistent size of these logs makes it easier to stack them in warehouses and plan for transport.

Environmental Friendliness: As Central Asian countries start to have stricter rules about reducing plastic, kraft paper packaging helps manufacturers stay ahead of these laws and also appeals to eco-friendly buyers.

Our Paper Roll Packing Machine specifically addresses these regional requirements through adjustable wrapping tension and compatibility with locally sourced kraft paper grades.

Technical Specifications

Key Operational Advantages

Stable Production Output: The machine maintains consistent wrapping quality at 5–7 logs per minute. This throughput suits mid-scale tissue producers processing 10–20 tons daily without requiring fully automated systems.

Simplified Maintenance: Each wrapping, sealing, and cutting section operates via independent motors. You can isolate and service individual components without halting entire production lines. Routine maintenance requires only basic tools and completes within 30 minutes.

Energy Efficiency: At 6.3 kW total power consumption, the system operates at one-third the energy demand of comparable heat-shrink tunnel machines. Combined with low-cost kraft paper materials, you achieve dual savings in utilities and consumables.

Moisture Protection: The multi-layer kraft paper wrapping creates a semi-hermetic barrier. While not waterproof, it effectively shields logs from ambient humidity during 30–60 day warehouse storage periods typical in Central Asian distribution cycles.

Flexible Roll Sizing: Adjustable guides accommodate roll diameters from 90 mm to 150 mm and lengths up to 2900 mm. You can switch between product specifications in under 15 minutes using manual calibration knobs.

How the Machine Integrates Into Your Production Line

The HY-60 functions as the packaging bridge between toilet paper log saws and final bundling stations. Here's the typical workflow integration:

Upstream Connection: After your log saw cuts parent rolls into finished logs, conveyor belts transport them to the wrapping machine's infeed station. The machine accepts logs arriving at 30–60 second intervals.

Wrapping Process: Operators manually position each log onto the wrapping platform. Pneumatic clamps secure the log while the turntable rotates, applying kraft paper from pre-loaded rolls. Heat sealers activate at programmed intervals to bond paper layers.

Downstream Handling: Wrapped logs exit via discharge conveyor for manual banding or carton packing. For higher automation, you can connect to automatic bundling machines that group 6–12 wrapped logs into wholesale units.

This semi-automatic design balances labor efficiency with capital investment. You avoid the 3–5 operator requirement of manual wrapping while maintaining budget flexibility compared to $80,000+ fully robotic systems.

Material Cost Comparison Analysis

Understanding packaging economics helps you evaluate total ownership costs beyond machine purchase price.

Kraft Paper: At current market rates, 50 GSM kraft paper costs approximately $0.02–0.03 per log. Monthly consumption for 100,000 logs totals $2,000–$3,000.

Shrink Film: Equivalent PE film packaging costs $0.05–0.07 per log due to higher material prices and electricity for heat tunnels. The same 100,000 logs require $5,000–$7,000 monthly.

Plastic Bags: Individual bagging ranges $0.04–0.06 per unit when including labor for manual insertion and sealing.

Over one year of 1.2 million log production, the Paper Roll Packing Machine using kraft paper saves $36,000–$48,000 compared to shrink film methods. These savings typically recover machine investment within 8–14 months of continuous operation.

Frequently Asked Questions

Q1: Semi-Automatic or Fully Automatic?

Choose based on your budget, labor cost, and production target. Semi-automatic machines like the HY-60 suit operations with available labor and production volumes under 200,000 logs monthly. Fully automatic systems become cost-effective when labor expenses exceed $800/month per operator or daily output surpasses 8,000 logs.

Q2: Can the packaging machine connect with my existing production line?

Yes. The HY-60 uses standard conveyor height (750 mm) and width (600 mm) compatible with most log saws and bundling equipment. Our technical team provides connection diagrams during order confirmation to ensure seamless integration.

Q3: What packaging formats can be produced?

This machine specifically wraps toilet paper logs in kraft paper. For finished roll packaging (individual toilet paper rolls, kitchen towels, facial tissues), we offer separate wrapping and bundling machines. You can configure complete lines handling multiple formats—contact us with your product portfolio for customized recommendations.

Q: What information should I provide before getting a quotation?

A: To recommend the optimal tissue production solution, please share:

• Product Type: Toilet paper logs, finished rolls, or both
• Estimated Budget: Total investment range for machinery
• Factory Area: Available floor space in square meters
• Labor Cost: Average monthly wages in your region
• Target Capacity: Daily or monthly production volume
• Voltage Requirement: Local electrical standards (220V/380V/440V, 50Hz/60Hz)

With these details, we'll design a complete system proposal including machine specifications, layout drawings, and ROI projections within 24 hours.

Start Your Cost-Effective Packaging Solution

Ready to use the Paper Roll Packing Machine to calculate your exact savings potential? Contact our packaging specialists at doris@hytissuemachine.com with your production parameters for a detailed cost-benefit analysis and quotation.
