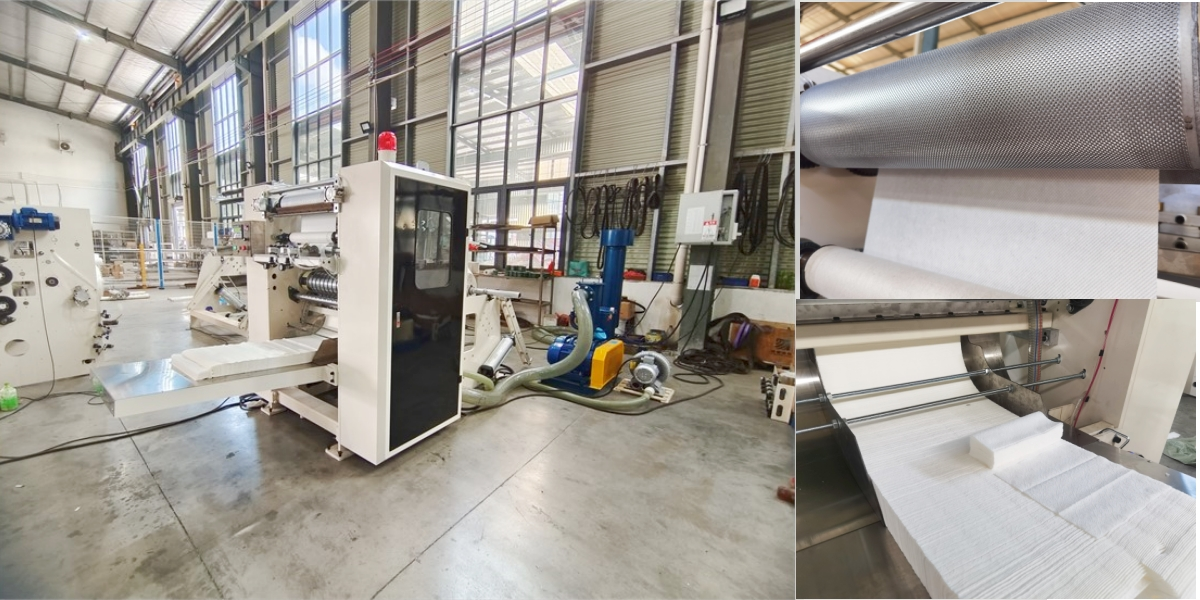

Z Fold Machine

Z Fold Machine – Professional N-Fold Hand Towel Converting Equipment

Industrial converting demands precision and efficiency. Henan Hengyu Machinery's Z Fold Machine is an enterprise-grade solution engineered for high-volume commercial hand towel production. This system accommodates jumbo roll widths from 0-840mm and diameters up to 1200mm, producing consistent 210×210mm unfolded towels (±4mm tolerance) and 70×210mm folded products. Equipped with dual jumbo roll stands for continuous operation and an integrated color glue lamination device featuring two embossing units plus one glue lamination unit, it delivers production speeds of 60-80 m/min. The vacuum suction N-fold technology ensures precise folding geometry essential for automated dispensing in offices, hospitals, restaurants, and public facilities. This configuration reduces material waste, minimizes labor dependency, and maintains uniform stack density critical for downstream packaging lines.

How Z Fold Machine Transforms Commercial Hand Towel Production

Commercial hand towel manufacturing requires stable output and consistent quality. Traditional manual folding increases labor costs and creates dimensional inconsistencies.

Our machine addresses these challenges through advanced vacuum adsorption technology. The system maintains precise fold alignment even at maximum speed. This ensures every towel dispenses smoothly from commercial dispensers.

The dual jumbo roll stand enables continuous production without downtime. Operators switch rolls while the machine keeps running. This design significantly improves manufacturing efficiency and reduces per-unit production costs.

Integrated embossing and pneumatic slitting systems eliminate separate processing steps. You achieve clear embossing patterns and accurate dimensions in a single pass. This streamlined workflow is ideal for growing tissue converters entering the commercial towel market.

Technical Specifications

Key Advantages That Improve Your Production Efficiency

Precise Vacuum Folding Technology

The vacuum adsorption system creates perfectly aligned N-folds. Each towel maintains consistent dimensions throughout production runs. This precision matters when you supply hotels, hospitals, or restaurant chains where dispenser compatibility is critical.

Low Labor, High Output

Automatic folding, embossing, counting, and slitting reduce manual intervention. One operator can manage the entire production process. This labor efficiency directly impacts your profit margins in competitive markets.

Flexible Customization Options

Adjust towel sizes, embossing patterns, and paper specifications through simple machine settings. Whether you're producing premium embossed towels or standard commercial grades, the machine adapts to your market requirements without costly retooling.

Reliable Timing Belt Drive

The transmission system ensures stable operation during extended production shifts. Low noise levels and reduced vibration protect mechanical components. This design minimizes maintenance costs and extends machine lifespan.

Integrated Processing Systems

Combined embossing and slitting in one production line reduces equipment footprint. You save factory space while eliminating material handling between separate machines. This integration also reduces production defects caused by material transfer.

Applications Across Commercial and Industrial Sectors

The Z Fold Machine serves diverse high-demand environments where consistent quality matters:

Healthcare Facilities

Hospitals and clinics require hygienic, lint-free hand towels. The automated folding process minimizes human contact during production. This touchless processing helps meet stringent healthcare standards.

Hospitality Industry

Hotels and restaurants need premium-appearance towels that enhance guest experience. The embossing unit creates attractive patterns while maintaining softness. Your customers appreciate both aesthetics and functionality.

Office Buildings and Commercial Spaces

High-traffic washrooms demand reliable dispensing and cost-effective supply. The precise N-fold design works with standard commercial dispensers. This compatibility makes your products easier for facility managers to adopt.

Public Transportation and Facilities

Airports, shopping malls, and transit stations need bulk supply solutions. The machine's high-speed capability ensures you can meet large-volume contracts. Consistent quality maintains your reputation across long-term supply agreements.

Quality Control and Production Reliability

Consistent fold shape and material integrity are required for each production run. Several quality assurance elements are incorporated into our machine.

Pneumatic slitting produces precise, tear-free cuts. Throughout continuous operation, edge quality is clean. This accuracy keeps automated packaging machinery from jamming later on.

Accurate batch tracking is possible with ink-marked counting. Production quantities are tracked without the need for manual counting. Order fulfillment and inventory management are made easier by this automatic tracking.

Stable operating speeds are maintained via the frequency conversion speed regulator. Motor performance automatically adjusts to changes in the material. During manufacturing shifts, this sophisticated control avoids speed-related flaws.

Paper fibers are not harmed by steel-to-rubber embossing, which produces distinct patterns. The regulated pressure adds aesthetic appeal while preserving suppleness. Your final goods strike a balance between tactile comfort and visual quality.

Why Choose Henan Hengyu Machinery

Having worked with tissue-converting equipment for more than 20 years, we are aware of the production difficulties that commercial hand towel producers face. Our engineers create machinery that strikes a balance between dependability, speed, and accuracy.

From installation to lifetime operation, we offer complete support. With our remote assistance, over 95% of clients finish setup. You can quickly attain reliable production with the help of video tutorials and round-the-clock technical support.

Our one-stop shop offers operator training, plant layout planning, and assistance with market research. We support your success from the start, whether you are growing your current business or breaking into the commercial towel industry.

A one-year warranty with free replacement parts for non-human damage is included with every unit. Strict pre-shipment inspection ensures that the equipment is prepared for manufacturing. Our proficiency in international logistics guarantees dependable delivery to your location.

Frequently Asked Questions

Q1: What type of tissue products can this machine produce?

A: The machine produces N-fold hand towels for commercial use. Standard output includes 210×210mm unfolded and 70×210mm folded dimensions, with customization available for other sizes.

Q2: How much factory space do I need?

A: The machine footprint is 8000×2000mm. Allow approximately 100-120㎡ total space including material storage, operator access, and finished product staging areas.

Q3: What's the difference between semi-automatic and fully automatic lines?

A: Semi-automatic lines require manual packaging of folded stacks. Fully automatic systems integrate downstream cartoning equipment, reducing labor costs significantly for high-volume production.

Q4: What information do you need for a quotation?

A: Please provide your target daily production capacity, available factory area, local voltage requirements, estimated budget, and whether you need embossing customization. This helps us recommend the optimal configuration.

Q5: What maintenance does the machine require?

A: Regular maintenance includes checking pneumatic system pressure, inspecting slitting blades every 500 operating hours, and lubricating timing belt drives. Our remote guidance simplifies these procedures.

Start Your Commercial Hand Towel Production Today

Ready to use the Z Fold Machine to improve production efficiency and product quality? Contact our technical team to discuss your specific requirements. Email us at doris@hytissuemachine.com for a comprehensive quotation and production line design.
